Wave Form

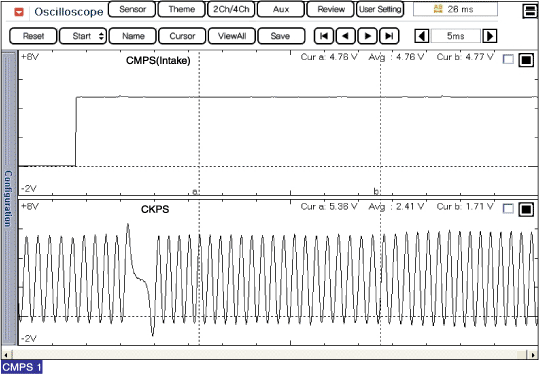

Fig 1: Display - Camshaft Position Sensor Signal Waveform (1 Of 2)
G11675684Courtesy of HYUNDAI MOTOR AMERICA

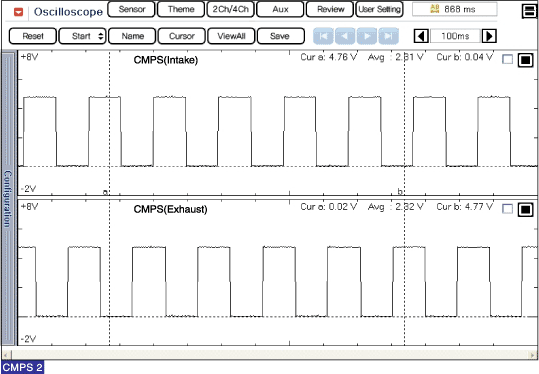

Fig 2: Display - Camshaft Position Sensor Signal Waveform (2 Of 2)
G11675685Courtesy of HYUNDAI MOTOR AMERICA
