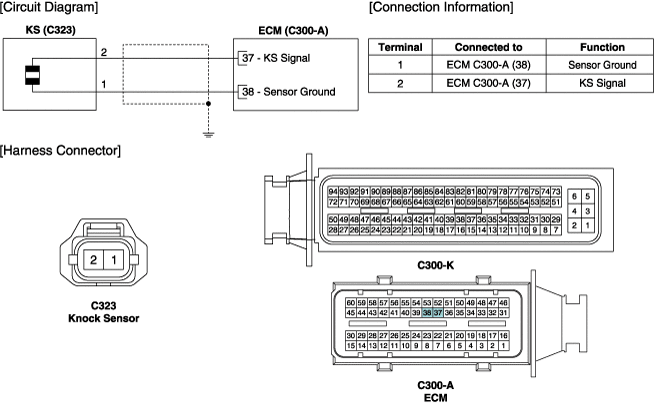

Home › Hyundai › 2016 › Tucson Limited, FWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.6L › Knock Sensor (KS) › Schematic Diagrams › Circuit Diagram
