Home › Hyundai › 2016 › Tucson Limited, FWD › Repair and Diagnosis › Transmission › Transmission Control Systems › Dual Clutch Transmission Control System - 1.6L › Shift Cable › Components and Components Location › Components

Components and Components Location: Components

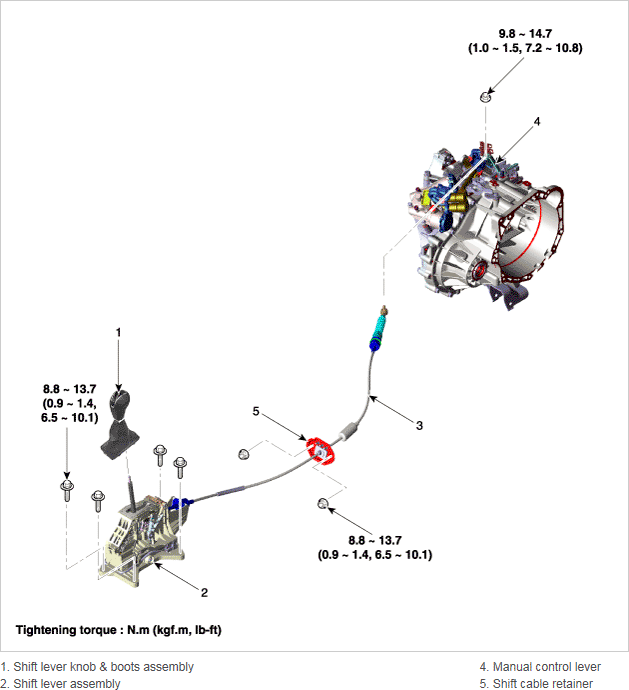

Fig 1: Shift Lever Components Location With Torque Specifications
G11675965Courtesy of HYUNDAI MOTOR AMERICA
