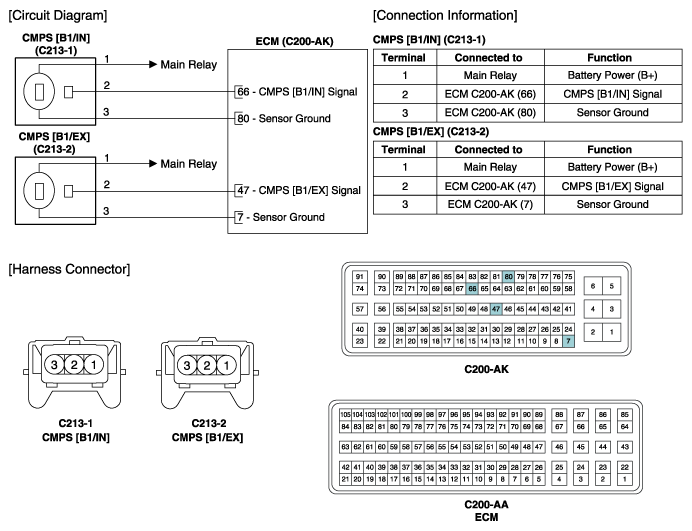

Home › Hyundai › 2016 › Tucson SE, 4WD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.0L › Camshaft Position Sensor (CMPS) › Schematic Diagrams › Circuit Diagram
