Repair Procedures: Inspection: Notes

  1. Check for resistance between terminals in each switch position (LH).

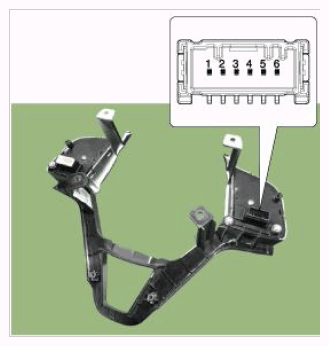

    Fig 1: Checking Resistance Between Switch Position Terminals (LH)
    G11669596Courtesy of HYUNDAI MOTOR AMERICA

    [LH: Audio + Hands Free]

    SWITCH CONNECTOR (2 - 5) RESISTANCE

    Switch Connector Terminal Resistance (±5%)
    SEEK Up 2-5 430 Ω
    SEEK Down 1.11 kΩ
    MODE 2.11 kΩ
    MUTE 3.11 kΩ
    Volume (+) 4.61 kΩ
    Volume (-) 6.81 kΩ
    Voice 10.71 kΩ
    SEND 18.91 kΩ
    END 40.91 kΩ
  2. Check for resistance between terminals in each switch position (RH).

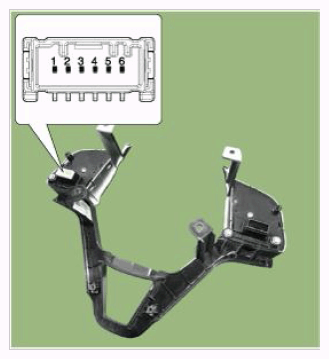

    Fig 2: Checking Resistance Between Switch Position Terminals (RH)
    G11669597Courtesy of HYUNDAI MOTOR AMERICA
