Components and Components Location: Components

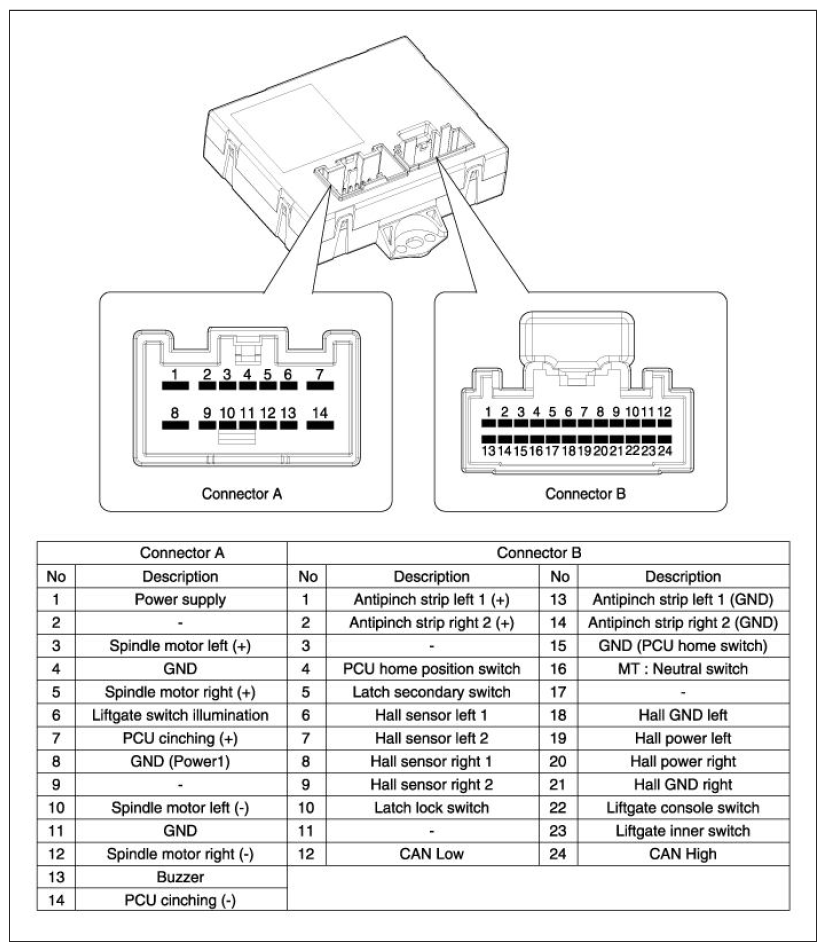

Fig 1: Locating Power Liftgate Module Connector Terminals
G11670098Courtesy of HYUNDAI MOTOR AMERICA
