Components and Components Location: Components

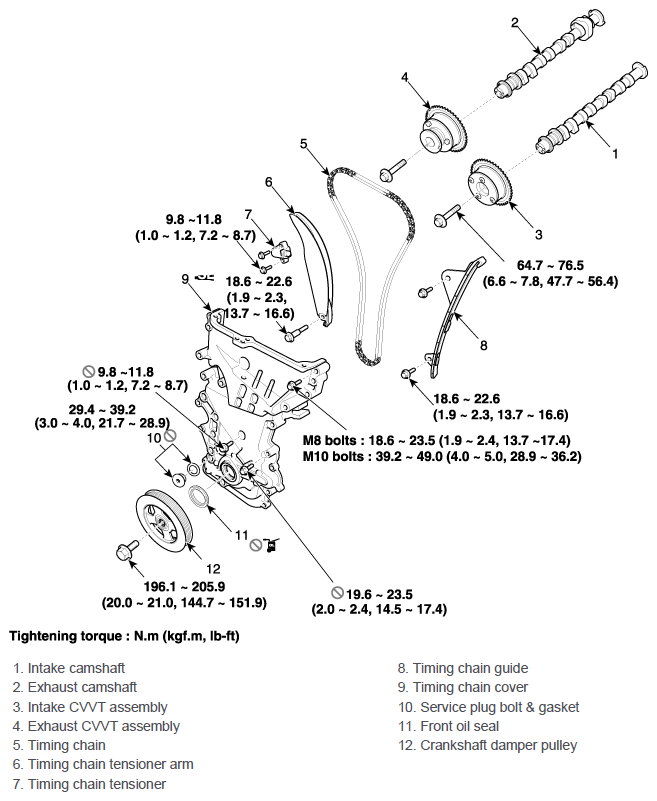

Fig 1: Timing System Components Location With Torque Specifications
G11643126Courtesy of HYUNDAI MOTOR AMERICA
