Antenna Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
Select the "Antenna Status Check".

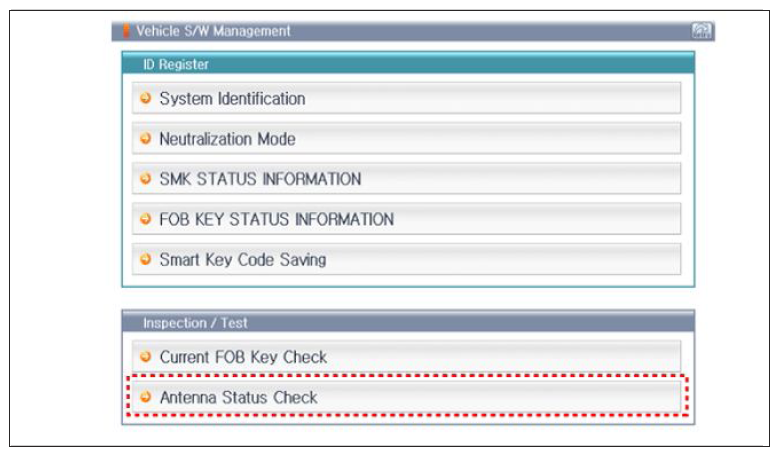

Fig 1: Display - Antenna Status Check Screen
Courtesy of HYUNDAI MOTOR AMERICA
After IG ON, select the "Antenna Status Check".

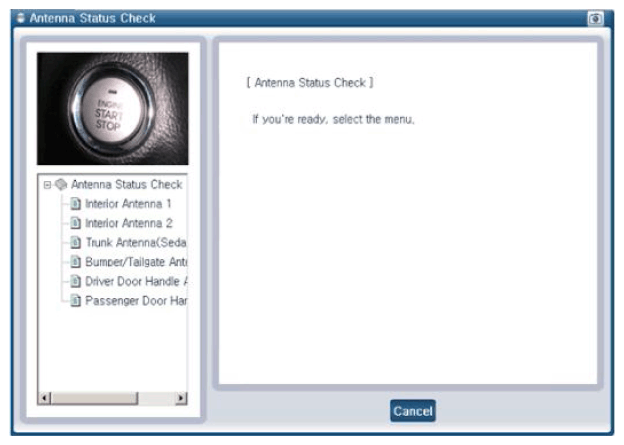

Fig 2: Display - IG On Antenna Status Check Screen
Courtesy of HYUNDAI MOTOR AMERICA
Set the smart key near the related antenna and operate it with a GDS.

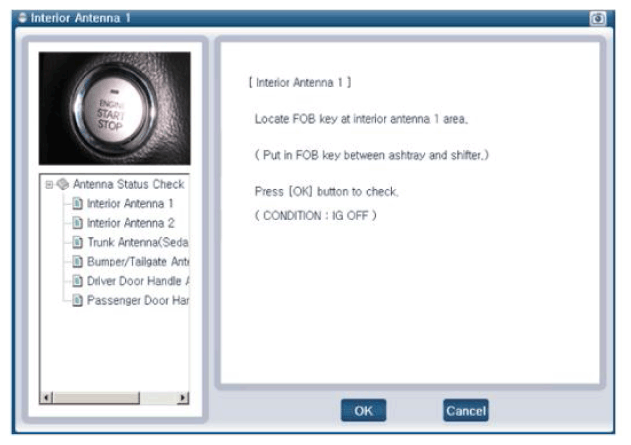

Fig 3: Display - Interior Antenna 1 Screen
Courtesy of HYUNDAI MOTOR AMERICA

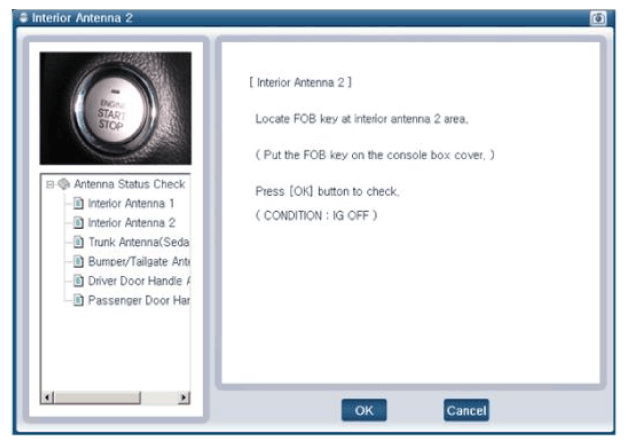

Fig 4: Display - Interior Antenna 2 Screen
Courtesy of HYUNDAI MOTOR AMERICA
If the smart key runs normal, the related antenna, smart Key (Transmission, reception) and exterior receiver are normal.
Antenna status
- Interior Antenna 1
- Interior Antenna 2
- Bumper Antenna
- Driver Door Antenna
- Assist Door Antenna
