Repair Procedures: Replacement

CAUTION:
  • Put on gloves to prevent hand injuries.
NOTE:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the front seat back cover.

    (Proceed to Front Seat - "FRONT SEAT BACK COVER ")

  2. Remove the front seat cushion cover.

    (Proceed to Front Seat - "FRONT SEAT CUSHION COVER ")

  3. After loosening the mounting bolts, detach the front seat back frame assembly (A) from the front seat cushion frame assembly (B).

    Tightening Torque:

    44.1 ~ 53.9 N.m (4.5 ~ 5.5 kgf.m, 32.5 ~ 39.8 lb-ft)

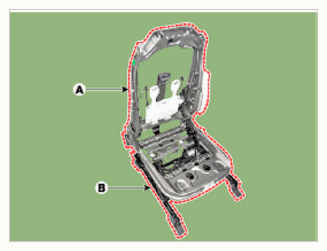

    Fig 1: Detaching Front Seat Back Frame Assembly From Front Seat Cushion Frame Assembly
    G11669467Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.

    Information

    • For the seat equipped with side airbag, remove the side airbag from the seat frame assembly. (Proceed to Restraint - "SIDE AIRBAG (SAB) MODULE ")
    • Before service, be fully aware of precautions and service procedure relevant to air bag. (Proceed to Restraint - "SIDE AIRBAG (SAB) MODULE ")
