Home › Hyundai › 2016 › Tucson SE, FWD › Repair and Diagnosis › Body & Frame › Seats › Front Seat Assembly › Front Seat › Components and Components Location › Components

Components and Components Location: Components

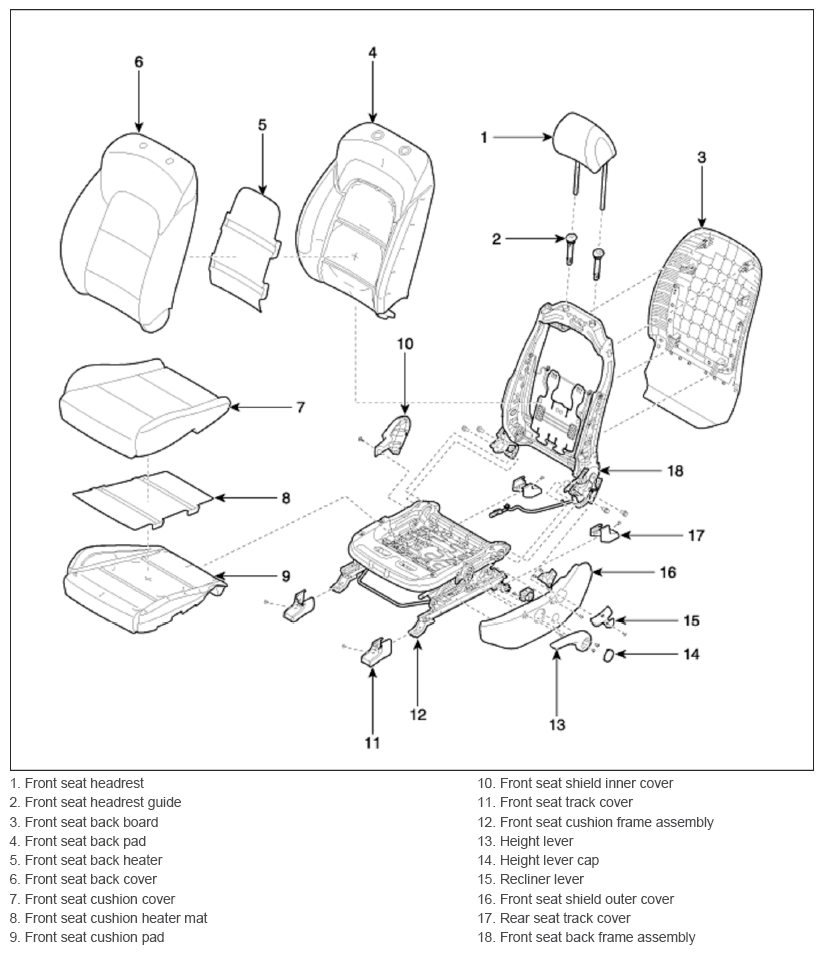

Fig 1: Front Seat Components Location
G11669414Courtesy of HYUNDAI MOTOR AMERICA
