Components and Components Location: Components

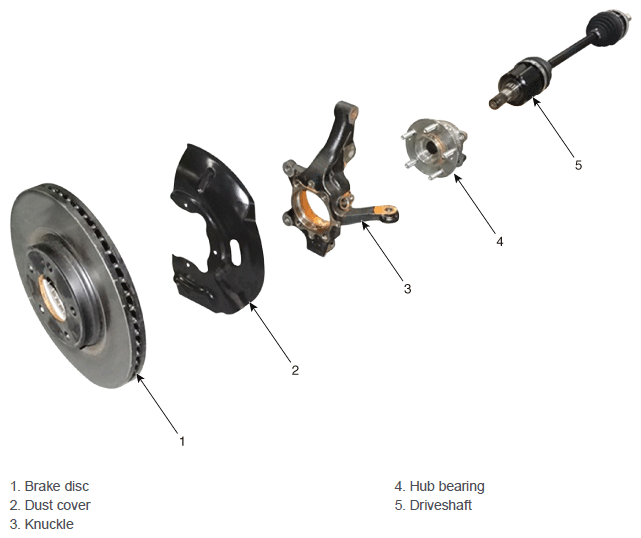

Fig 1: Front Hub/Knuckle/Tone Wheel Components Location
G11644121Courtesy of HYUNDAI MOTOR AMERICA
