Components and Components Location: Components

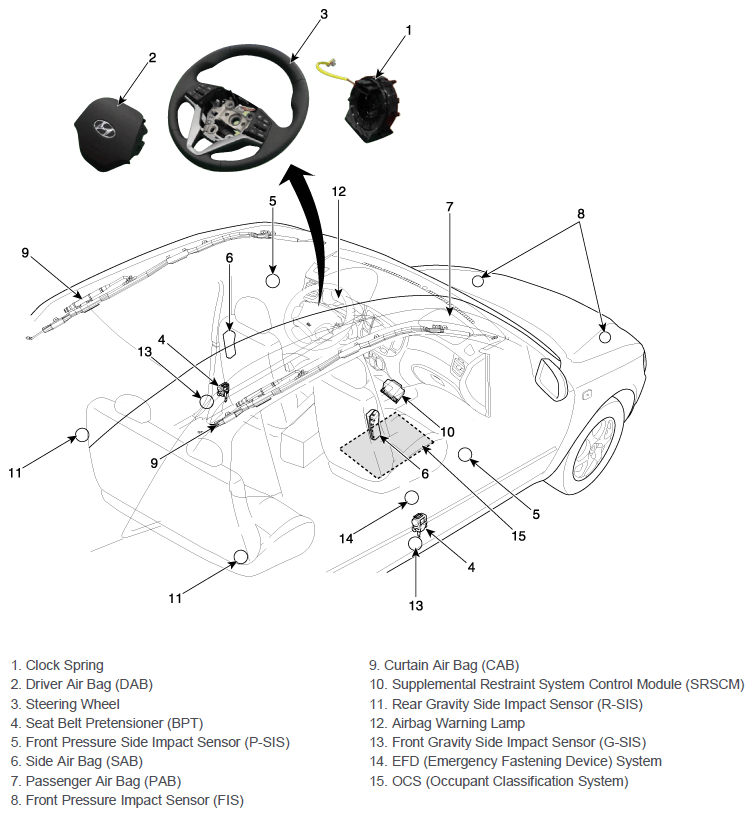

Fig 1: SRSCM Components Location
G11644532Courtesy of HYUNDAI MOTOR AMERICA
