Components and Components Location: Components

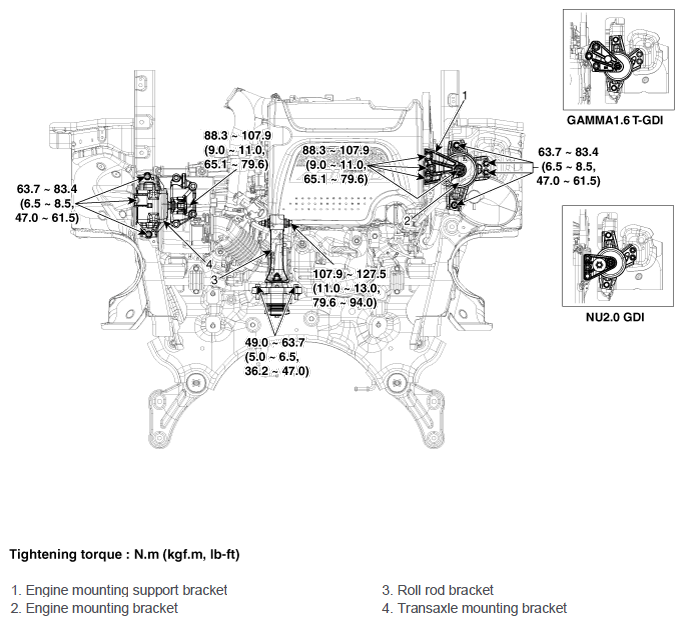

Fig 1: Engine Mounting Components Location With Torque Specifications
G11643099Courtesy of HYUNDAI MOTOR AMERICA
