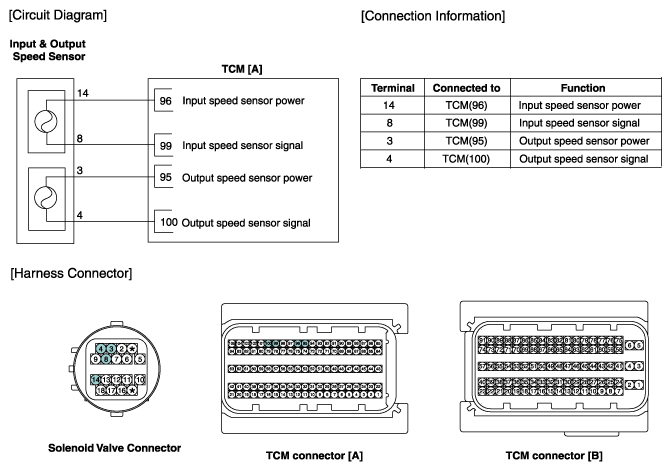

Home › Hyundai › 2016 › Tucson SE, FWD › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System - 2.0L › Output Speed Sensor › Schematic Diagrams › Circuit Diagram
