Components and Components Location: Components

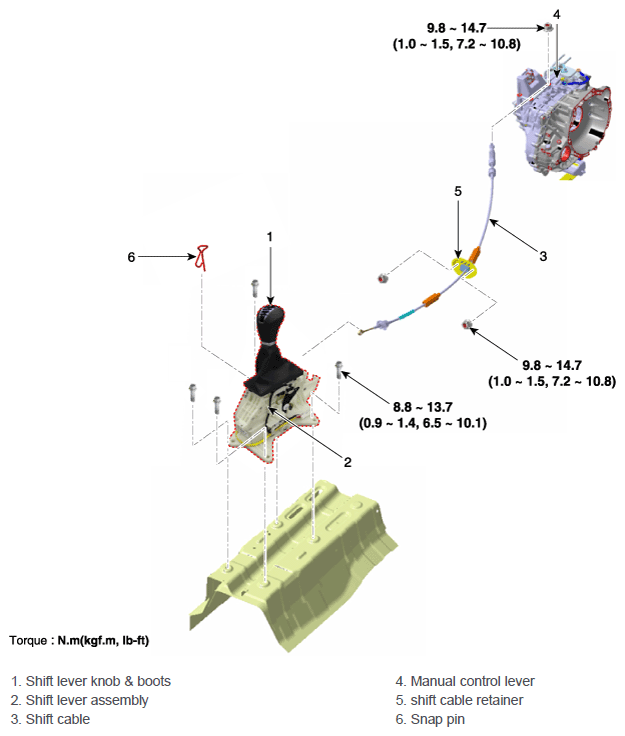

Fig 1: Shift Cable Components With Torque Specification
G11644020Courtesy of HYUNDAI MOTOR AMERICA
