Monitor GDS Data
- Connect GDS to "DATA LINK CONNECTOR (DLC)".
- IG key "ON", Engine "OFF".

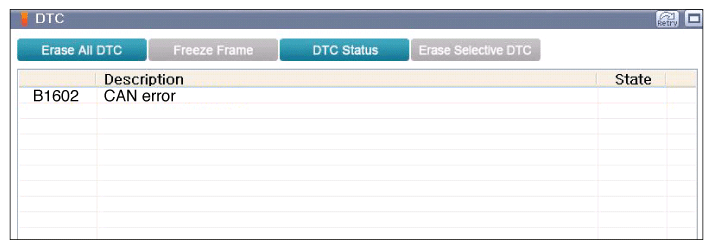

- Select "Diagnostic Trouble Codes (DTC) " with GDS.
- Monitor the Diagnostic Trouble Code and present trouble code.
- Erase the DTC.
- Is the DTC outputted again?
YES
- Go to "WIRING INSPECTION " procedure.
NO
- Fault is intermittent caused by poor contact in "IPS CONTROL MODULE" connector or was repaired and "IPS CONTROL MODULE" memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage.
- Repair or replace as necessary Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
