Components and Components Location: Components

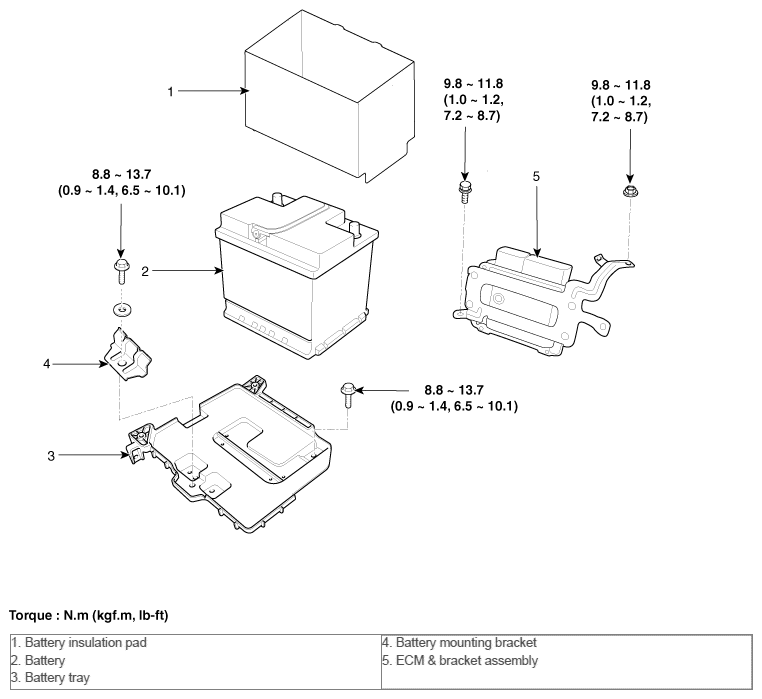

Fig 1: Battery Replacement Components With Torque Specifications
G10607828Courtesy of HYUNDAI MOTOR AMERICA
