Components and Components Location: Components

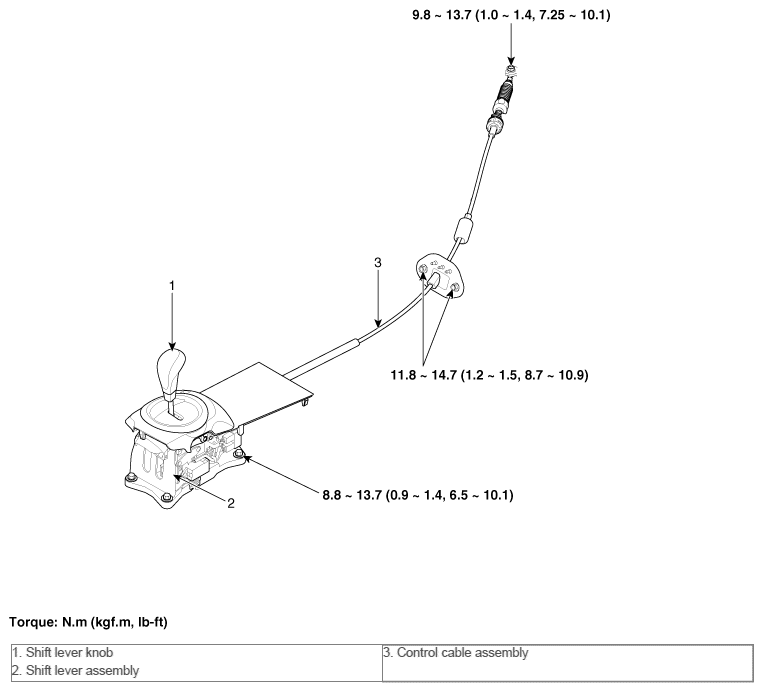

Fig 1: Shift Lever Replacement Components With Torque Specification
G10608151Courtesy of HYUNDAI MOTOR AMERICA
