Components and Components Location - 2016: Components

Fig 1: AVN Head Unit Replacement Components

Courtesy of HYUNDAI MOTOR AMERICA

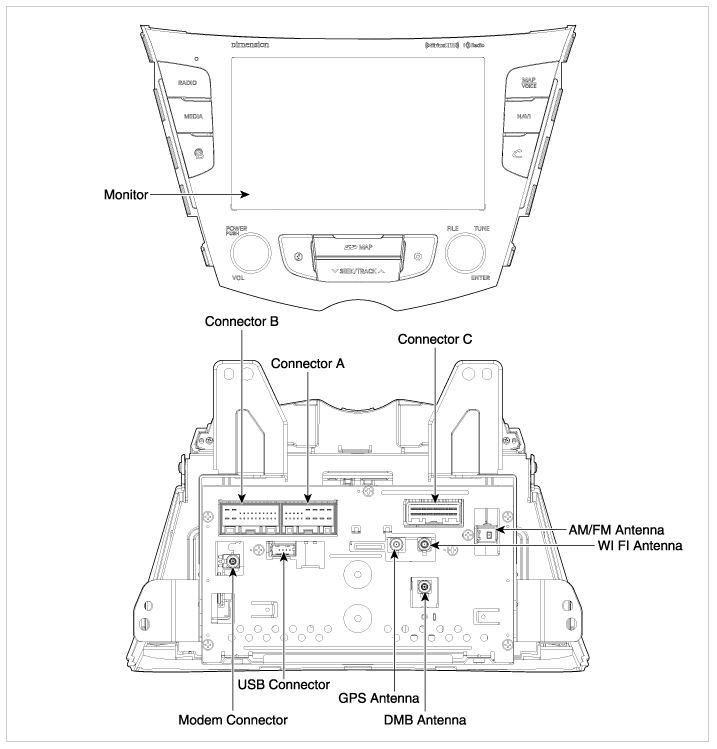

AVN (A/V & Navigation) Head Unit Connector

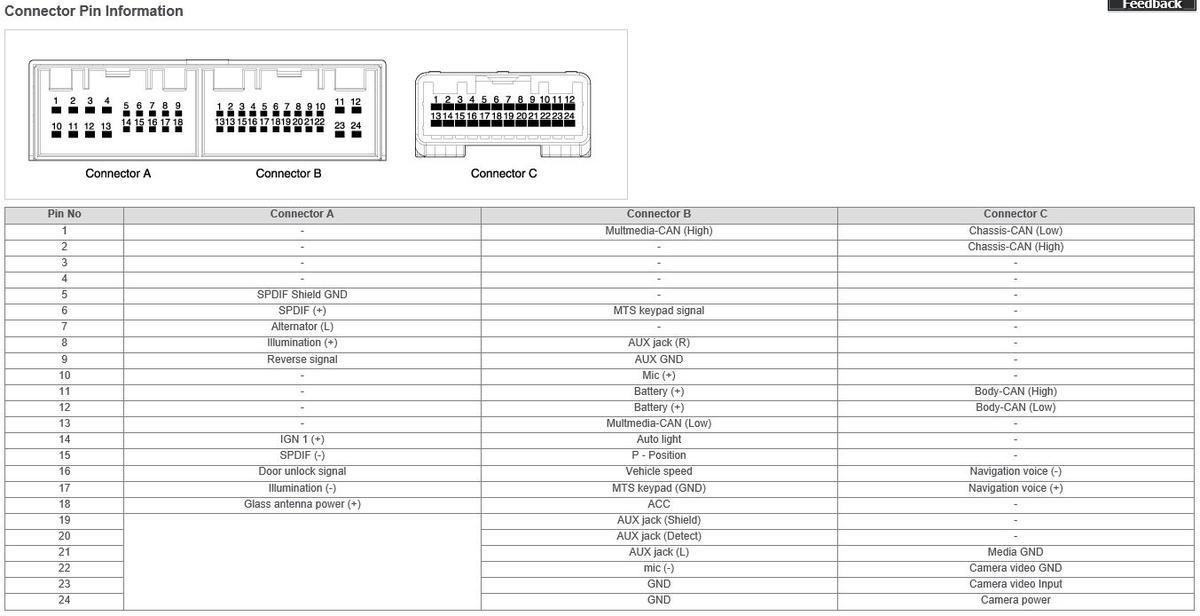

Fig 2: AVN (A/V And Navigation) Head Unit Connectors

Courtesy of HYUNDAI MOTOR AMERICA

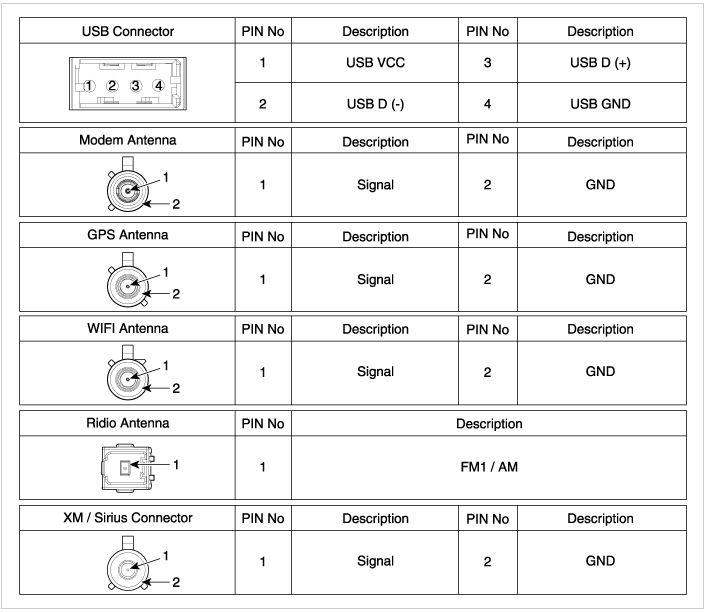

Fig 3: Radio And GPS Antenna Description Chart

Courtesy of HYUNDAI MOTOR AMERICA

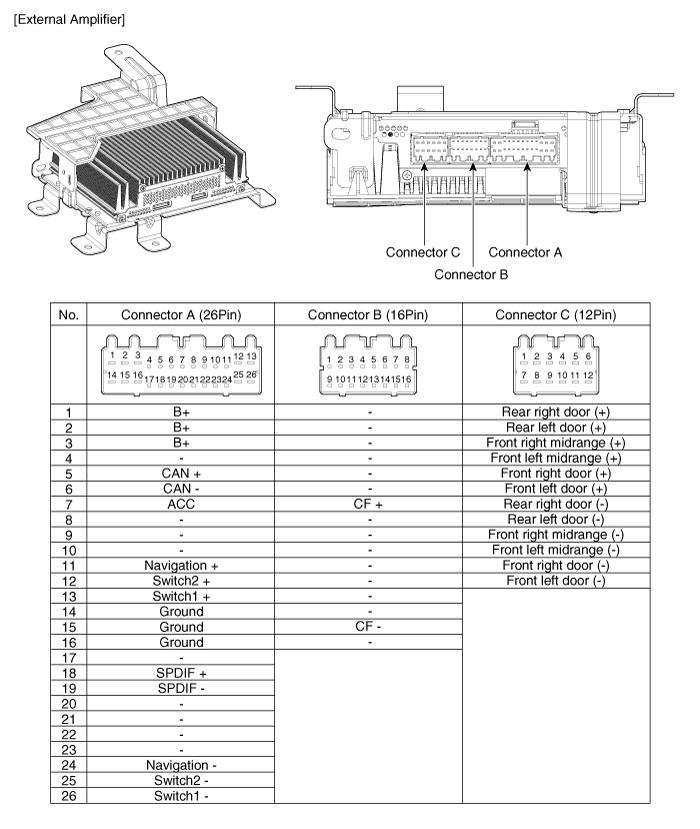

Fig 4: External Amplifier Connectors

Courtesy of HYUNDAI MOTOR AMERICA

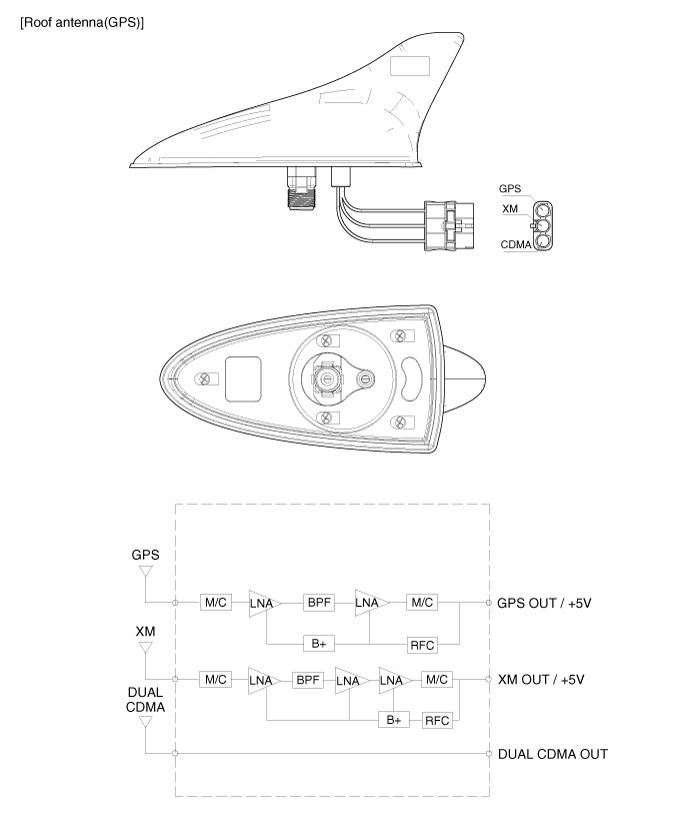

Fig 5: Roof Antenna (GPS) Circuit Diagram

Courtesy of HYUNDAI MOTOR AMERICA
