Front Body A

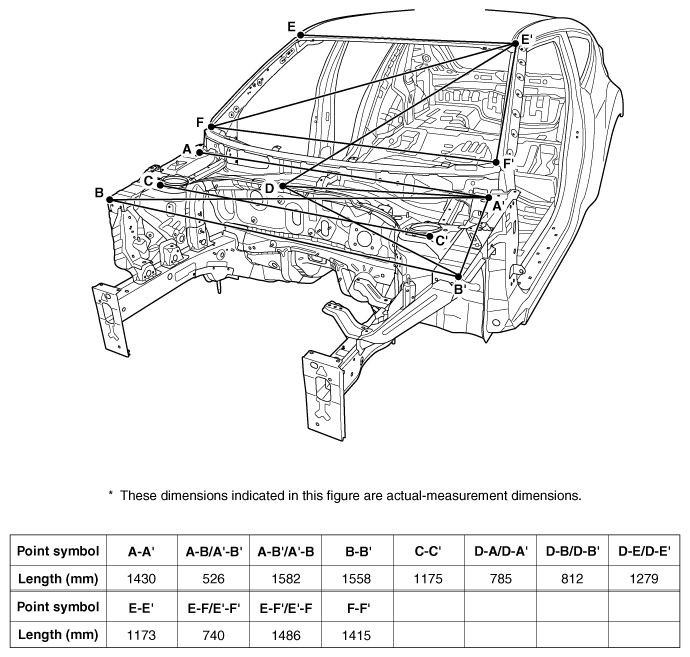

Fig 1: Identifying Front Body A Dimensions (1 Of 2)
G10605210Courtesy of HYUNDAI MOTOR AMERICA

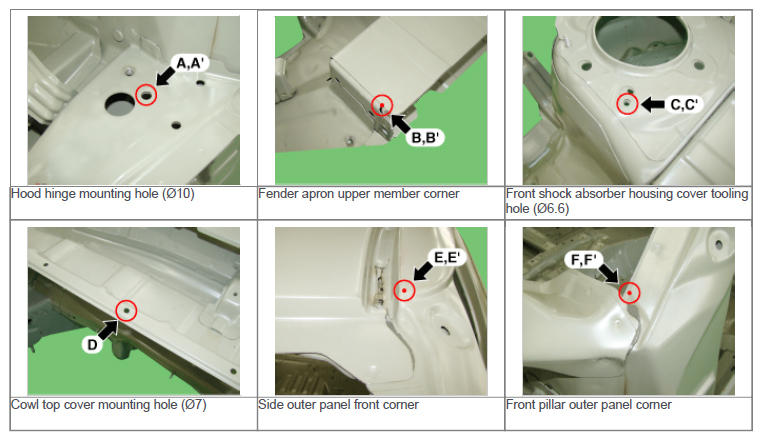

Fig 2: Identifying Front Body A Dimensions (2 Of 2)
G10605211Courtesy of HYUNDAI MOTOR AMERICA
