Front Body B

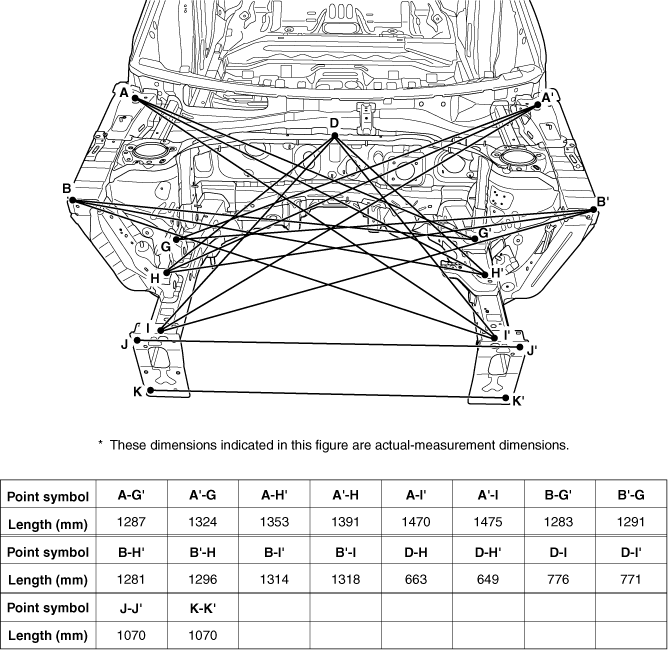

Fig 1: Identifying Front Body B Dimensions (1 Of 2)
G10605212Courtesy of HYUNDAI MOTOR AMERICA

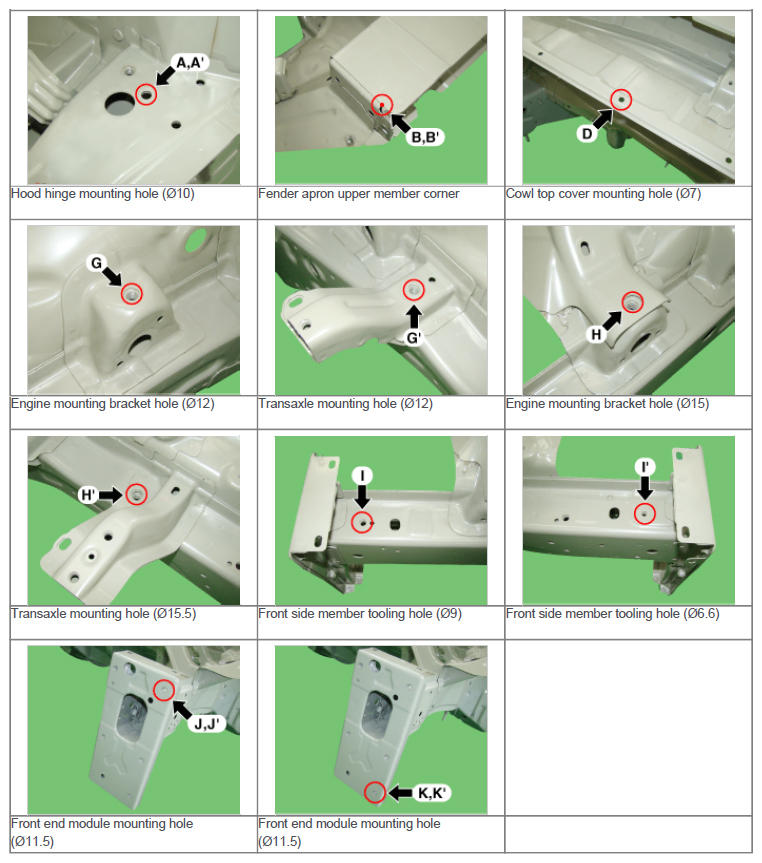

Fig 2: Identifying Front Body B Dimensions (2 Of 2)
G10605213Courtesy of HYUNDAI MOTOR AMERICA
