Front Body C

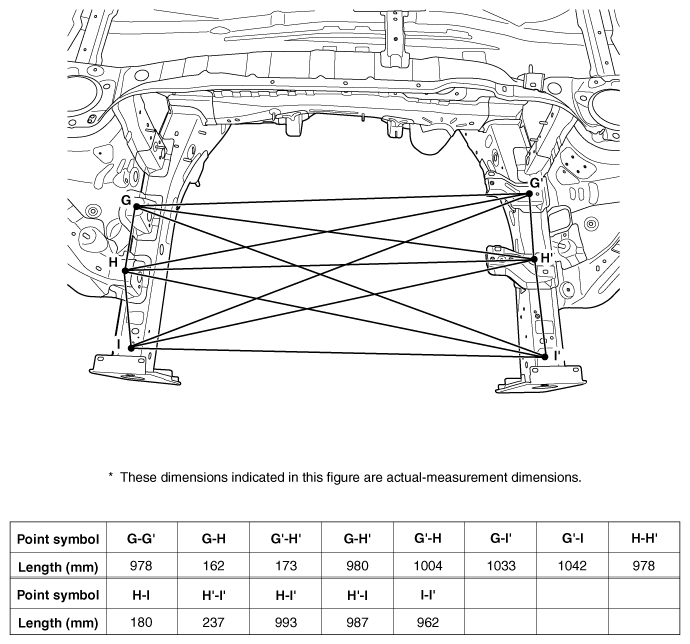

Fig 1: Identifying Front Body C Dimensions (1 Of 2)
G10605214Courtesy of HYUNDAI MOTOR AMERICA

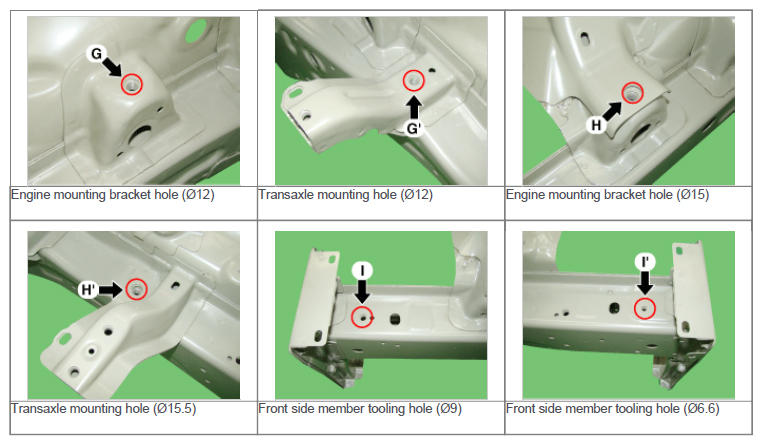

Fig 2: Identifying Front Body C Dimensions (2 Of 2)
G10605215Courtesy of HYUNDAI MOTOR AMERICA
