Interior A

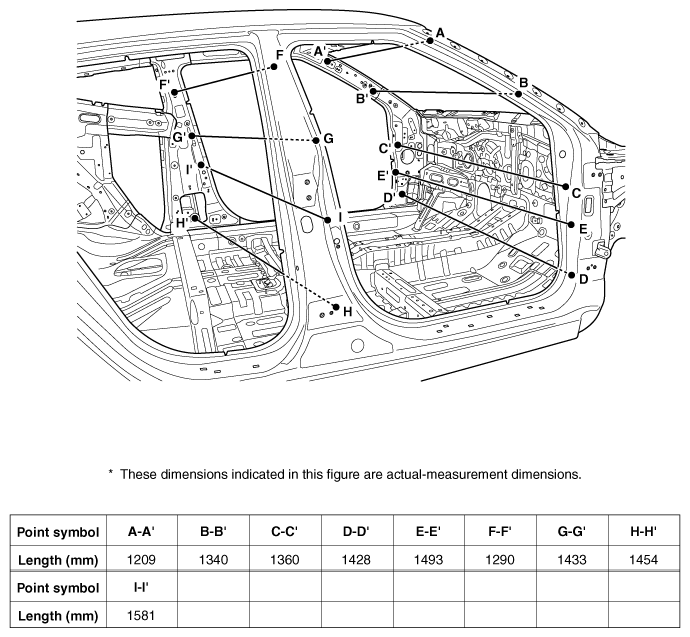

Fig 1: Identifying Interior A Dimensions (1 Of 3)
G10605224Courtesy of HYUNDAI MOTOR AMERICA

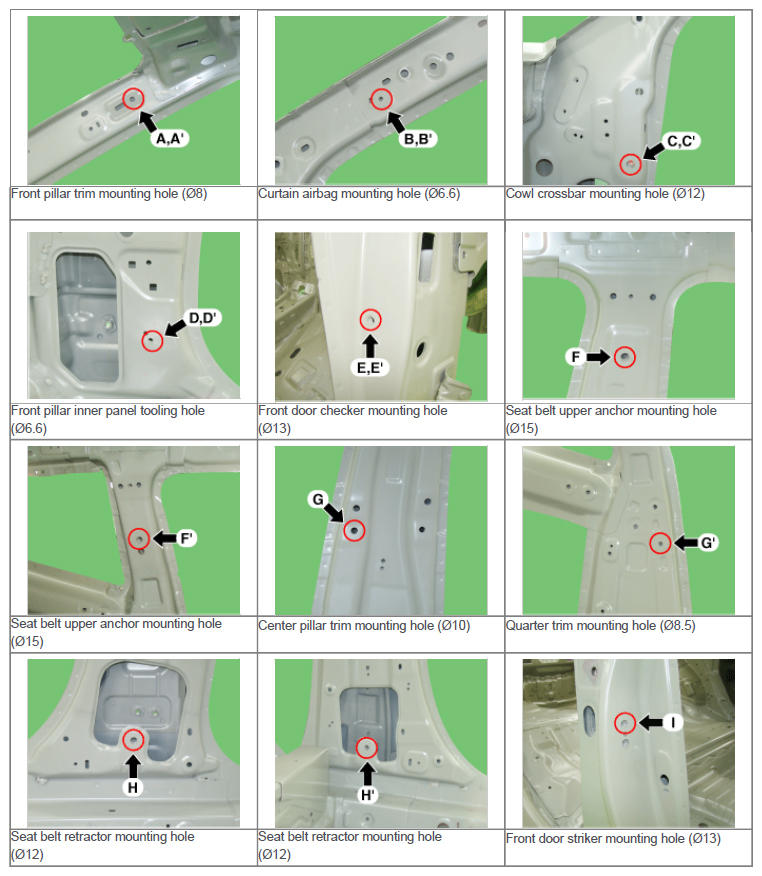

Fig 2: Identifying Interior A Dimensions (2 Of 3)
G10605225Courtesy of HYUNDAI MOTOR AMERICA

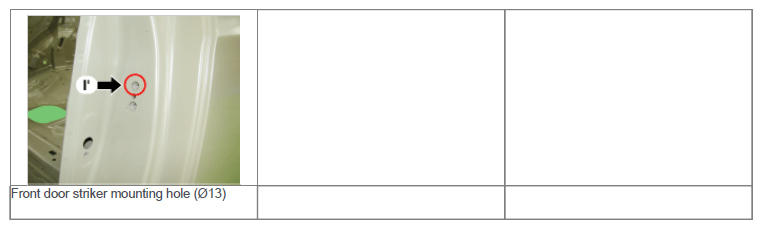

Fig 3: Identifying Interior A Dimensions (3 Of 3)
G10605226Courtesy of HYUNDAI MOTOR AMERICA
