Interior B

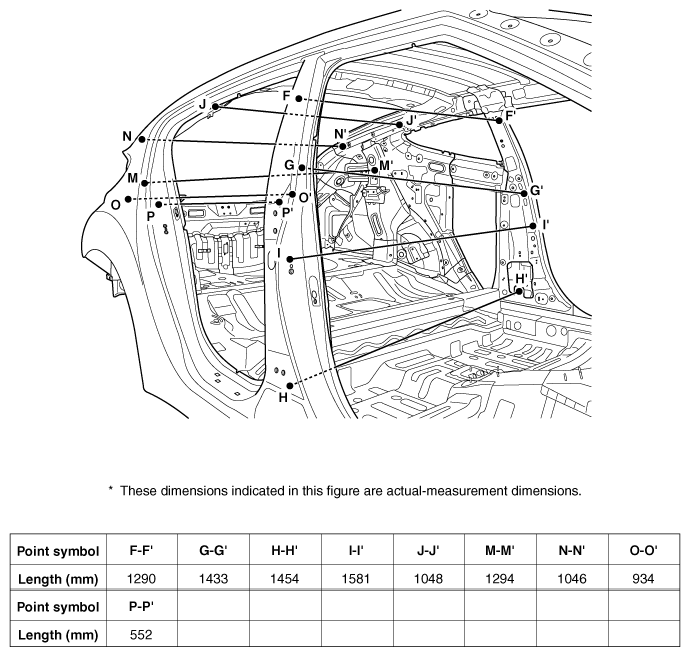

Fig 1: Identifying Interior B Dimensions (1 Of 3)
G10605227Courtesy of HYUNDAI MOTOR AMERICA

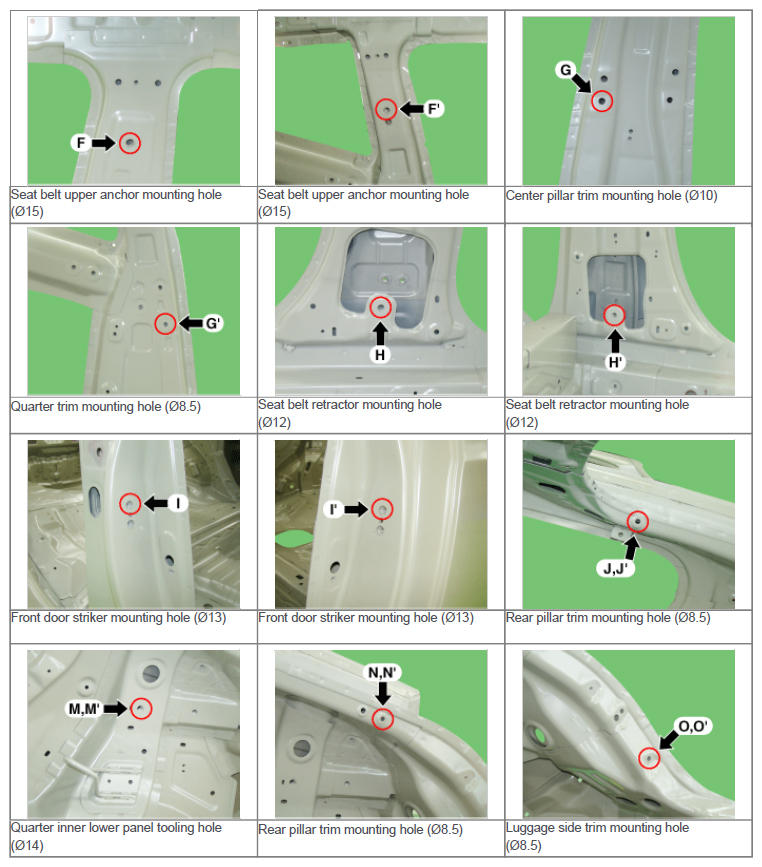

Fig 2: Identifying Interior B Dimensions (2 Of 3)
G10605228Courtesy of HYUNDAI MOTOR AMERICA

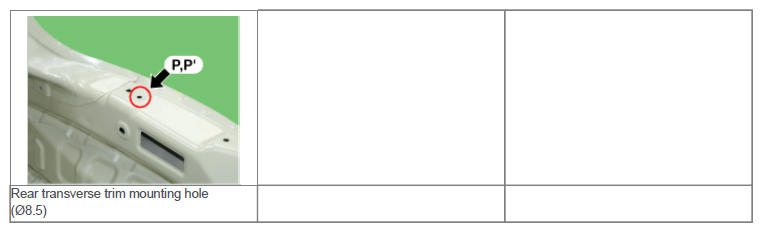

Fig 3: Identifying Interior B Dimensions (3 Of 3)
G10605229Courtesy of HYUNDAI MOTOR AMERICA
