Interior C

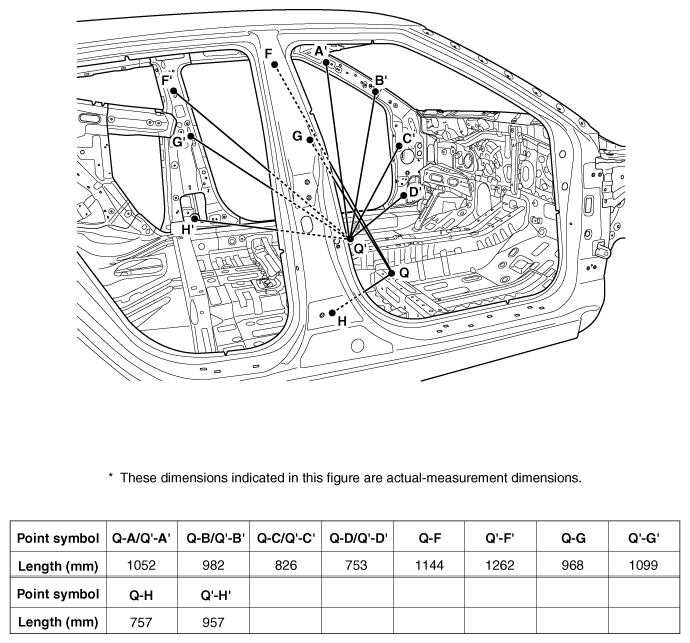

Fig 1: Identifying Interior C Dimensions (1 Of 2)
G10605230Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Identifying Interior C Dimensions (2 Of 2)
G10605231Courtesy of HYUNDAI MOTOR AMERICA
