Interior D

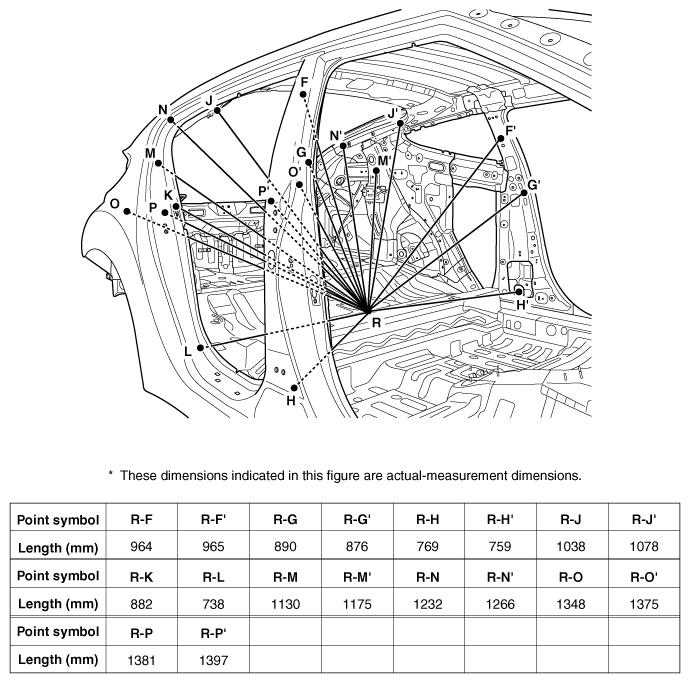

Fig 1: Identifying Interior D Dimensions (1 Of 3)
G10605232Courtesy of HYUNDAI MOTOR AMERICA

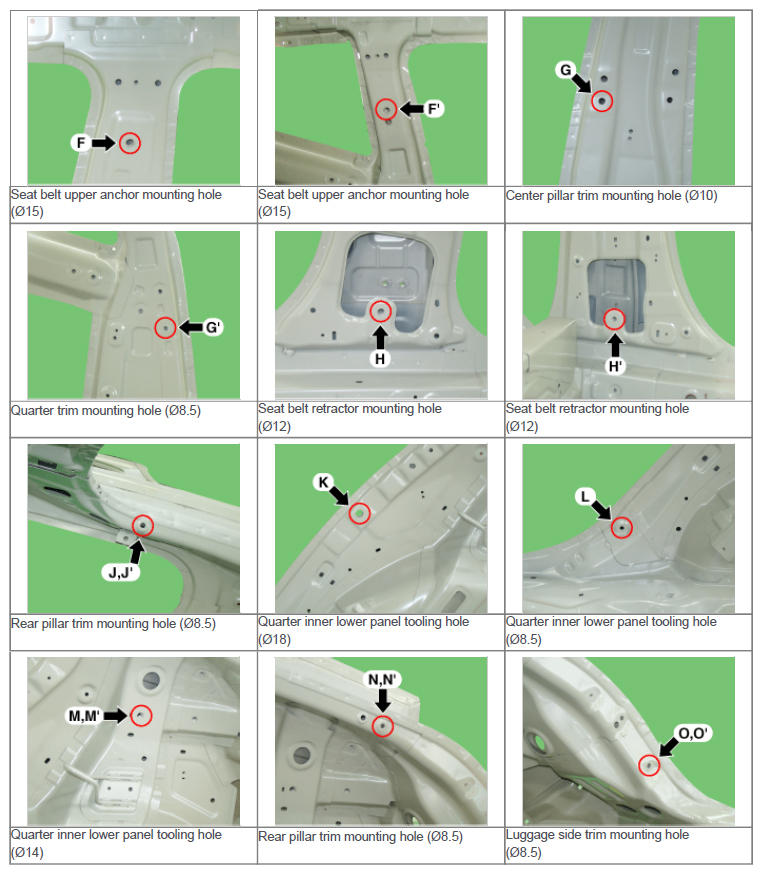

Fig 2: Identifying Interior D Dimensions (2 Of 3)
G10605233Courtesy of HYUNDAI MOTOR AMERICA

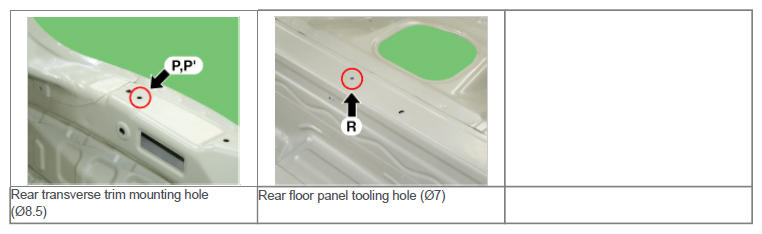

Fig 3: Identifying Interior D Dimensions (3 Of 3)
G10605234Courtesy of HYUNDAI MOTOR AMERICA
