Body Dimensions
›
Rear Body
›
Body Repair
Body Repair

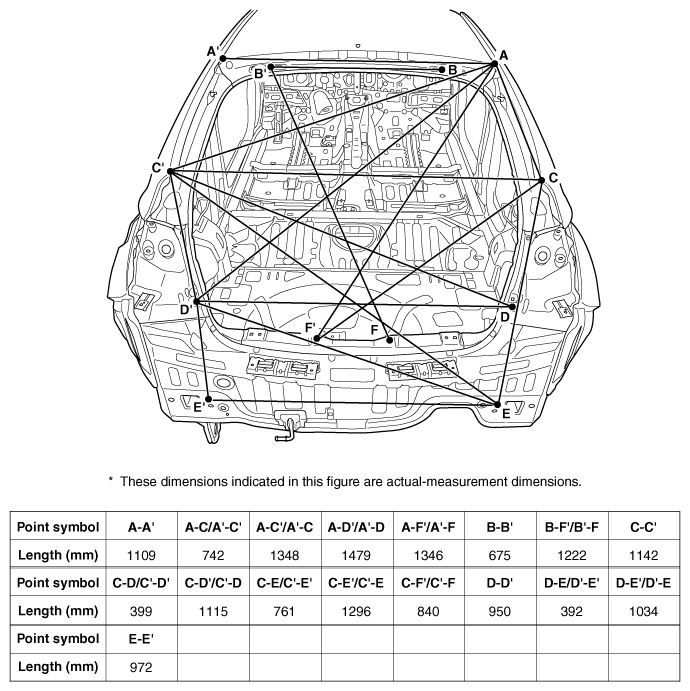

Fig 1: Identifying Rear Body Dimensions (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

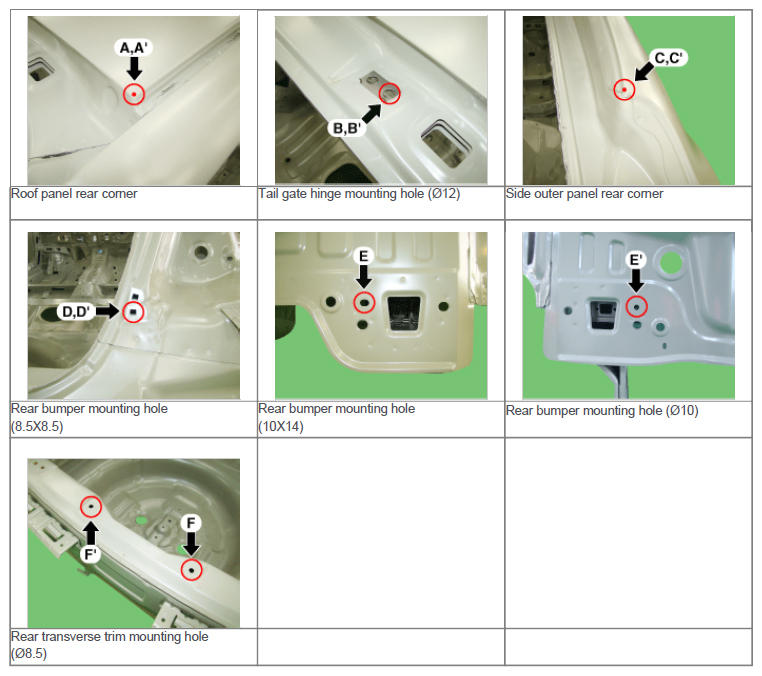

Fig 2: Identifying Rear Body Dimensions (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
