Repair Procedures: Inspection

  1. With the Lumbar Support Switch (A) in each position, make sure that continuity exists between the terminals below. If the continuity is not as specified, replace the Lumbar Support Switch.
    Fig 1: Lumbar Support Switch And Screws
    G10605827Courtesy of HYUNDAI MOTOR AMERICA

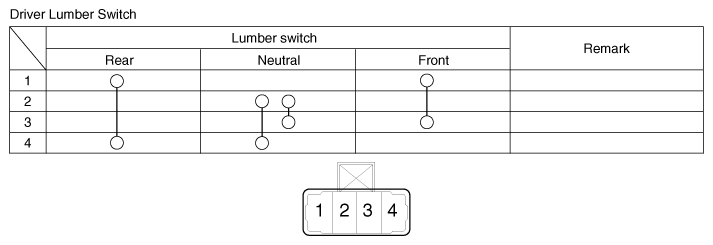

    Fig 2: Driver Lumbar Switch Continuity Chart
    G10605828Courtesy of HYUNDAI MOTOR AMERICA
