Components And Components Location: Components

[General Type]

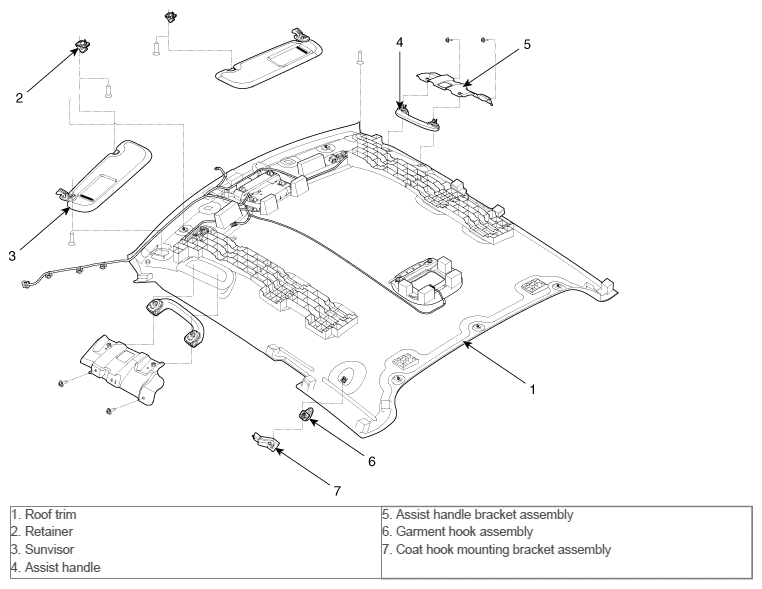

Fig 1: Roof Trim Replacement Components (General Type)

Courtesy of HYUNDAI MOTOR AMERICA

[Panoramaroof Type]

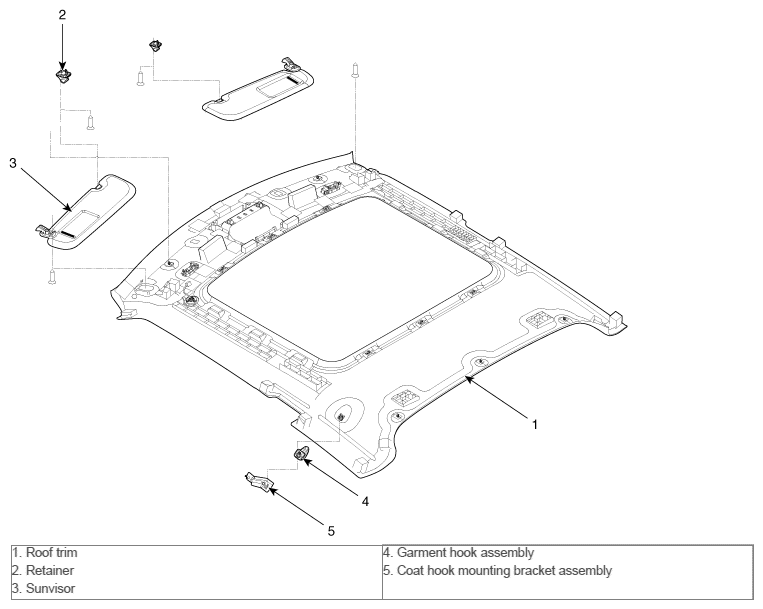

Fig 1: Roof Trim Replacement Components (Panoramaroof Type)

Courtesy of HYUNDAI MOTOR AMERICA
