Home › Hyundai › 2016 › Veloster Base, Standard Trans › Repair and Diagnosis › Electrical › Starter › Button Engine Start System › Start Stop Button › Components and Components Location › Component

Components and Components Location: Component

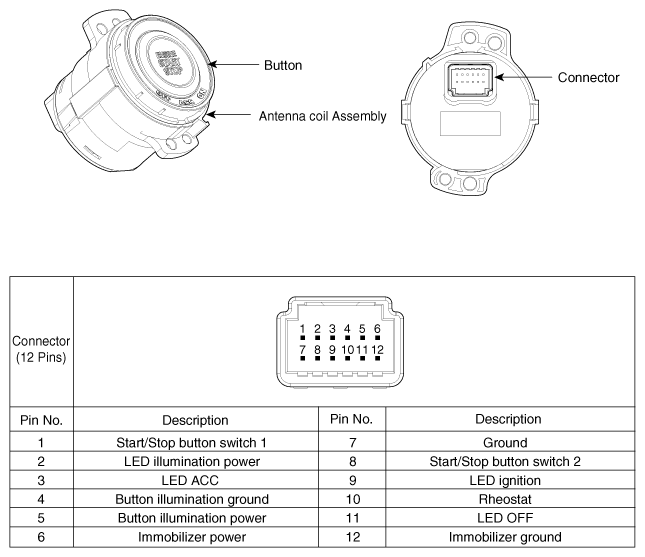

Fig 1: Start Stop Button Components Connector End View
G10606132Courtesy of HYUNDAI MOTOR AMERICA
