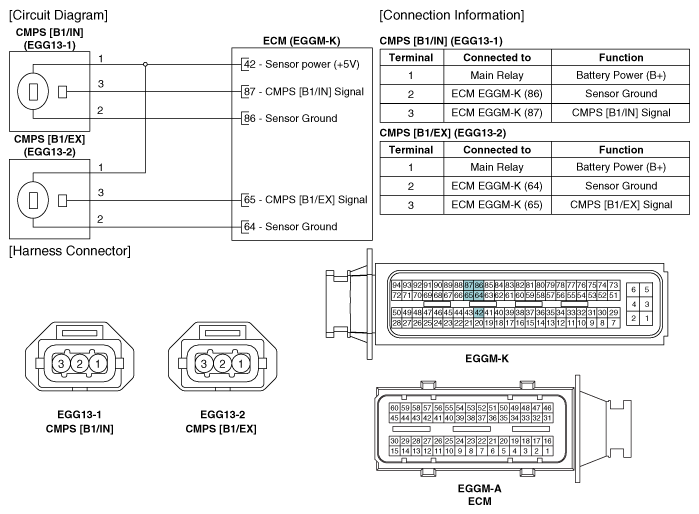

Home › Hyundai › 2016 › Veloster Base, Standard Trans › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.6L GDI › Camshaft Position Sensor (CMPS) › Schematic Diagrams › Circuit Diagram
