Repair Procedures: Removal

  1. Turn the Ignition Switch OFF and disconnect the Battery Negative (-) Cable.
  2. Disconnect the Manifold Absolute Pressure Sensor Connector (A).
  3. Remove the Installation Bolt (B) and then remove the Sensor from the Surge Tank.

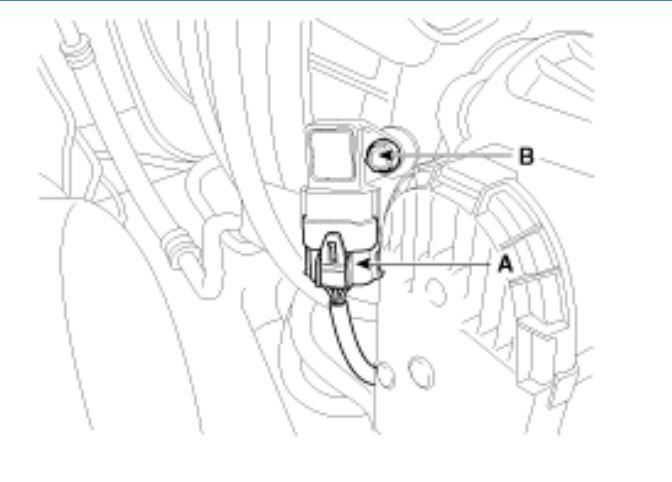

    4. Fig 1: Manifold Absolute Pressure Sensor Connector Installation Bolt
    G00561512Courtesy of HYUNDAI MOTOR AMERICA
