Components and Components Location: Components

WARNING: This page is about a different car, the 2015 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

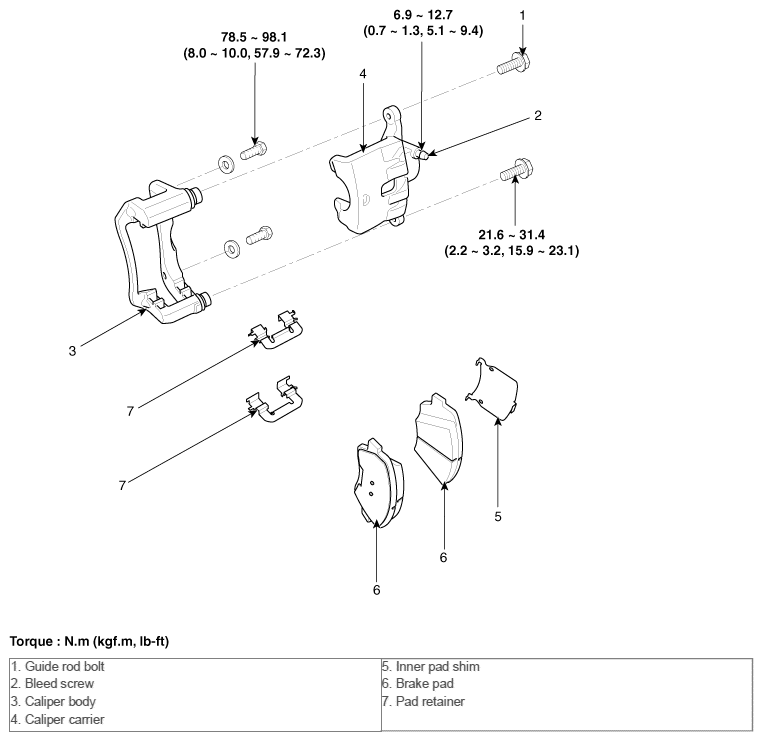

Fig 1: Front Disc Brake Replacement Components With Torque Specifications

Courtesy of HYUNDAI MOTOR AMERICA
