Components and Components Location: Components

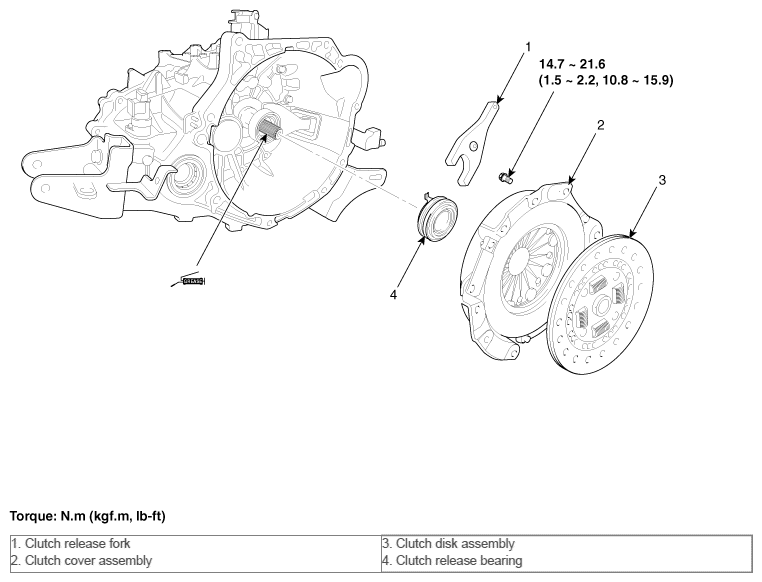

Fig 1: Clutch Cover And Disc Replacement Components With Torque Specification
G10604674Courtesy of HYUNDAI MOTOR AMERICA
