Components and Components Location: Component

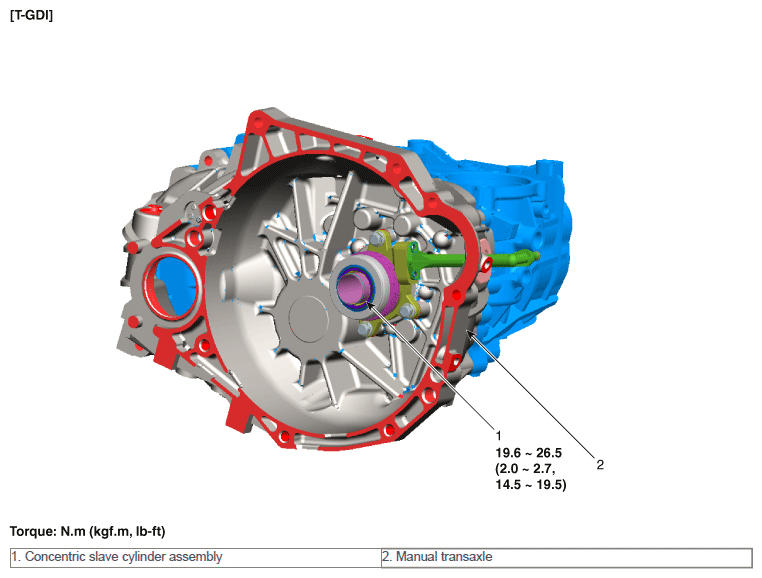

Fig 1: Concentric Slave Cylinder Assembly Replacement Components With Torque Specification
G10604697Courtesy of HYUNDAI MOTOR AMERICA
