Components and Components Location: Components

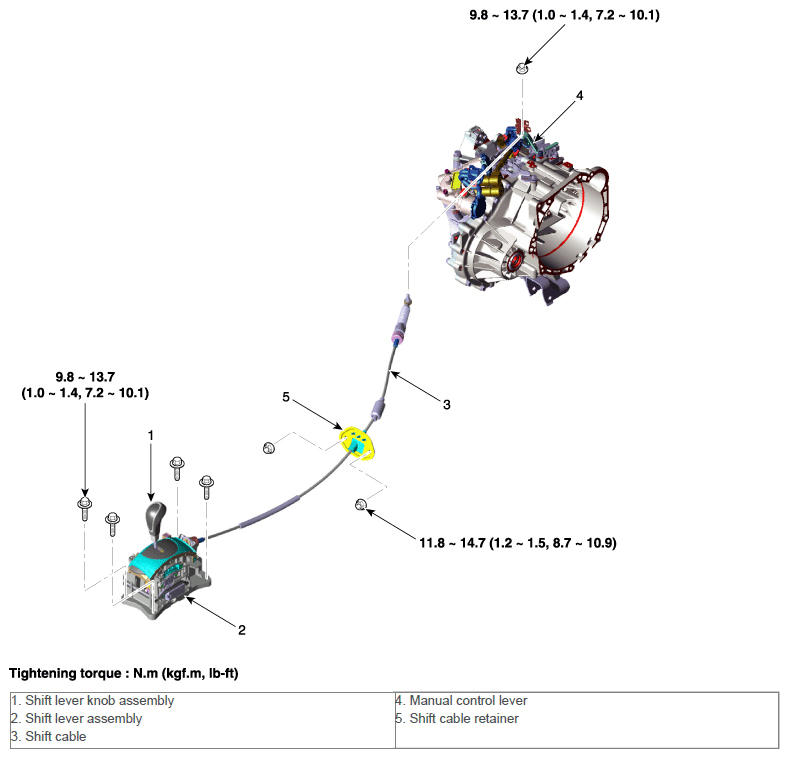

Fig 1: Shift Cable Components Location With Torque Specifications
G10607379Courtesy of HYUNDAI MOTOR AMERICA
