Circuit Diagram

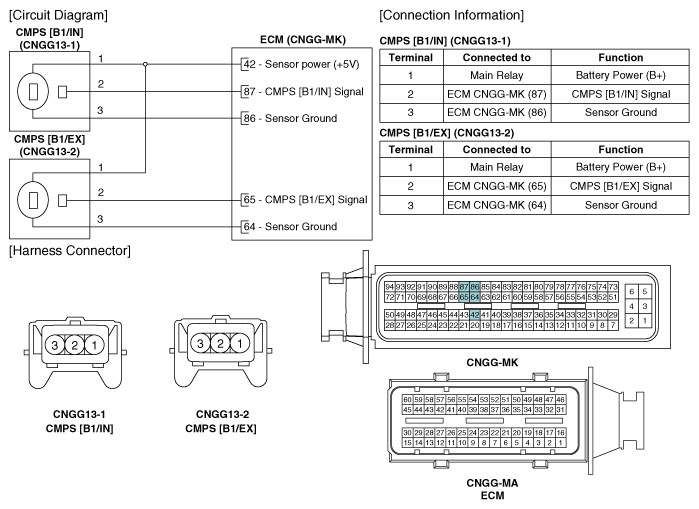

(M/T)

Fig 1: Camshaft Position Sensor Circuit Diagram (M/T) With Connector End Views
G10604561Courtesy of HYUNDAI MOTOR AMERICA

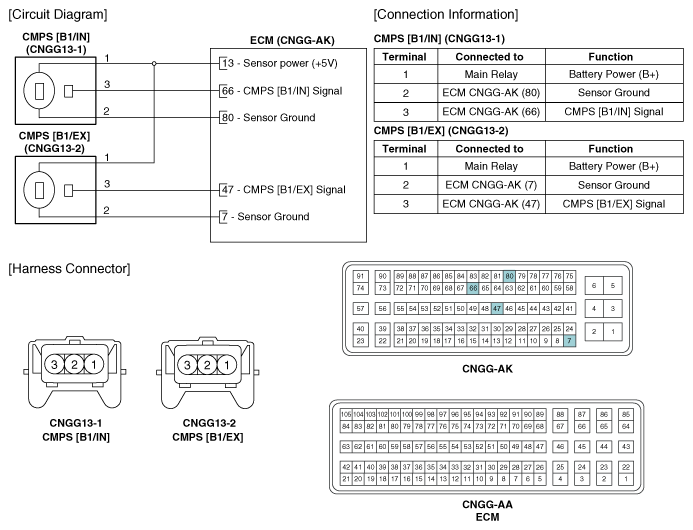

(A/T)

Fig 2: Camshaft Position Sensor Circuit Diagram (A/T) With Connector End Views
G10604562Courtesy of HYUNDAI MOTOR AMERICA
