Circuit Diagram

(M/T)

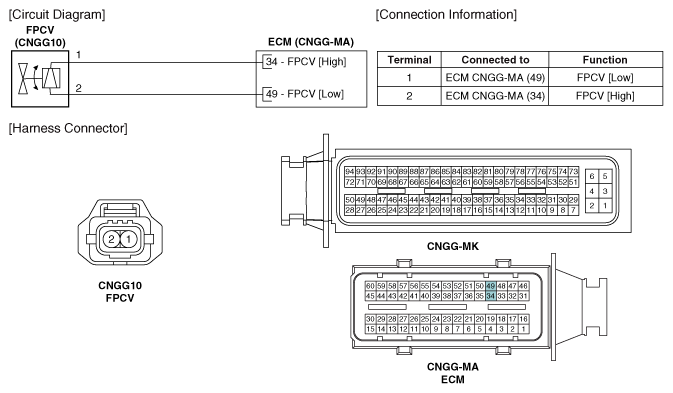

Fig 1: FPCV Circuit Diagram (M/T) With Connector End Views
G10604623Courtesy of HYUNDAI MOTOR AMERICA

(A/T)

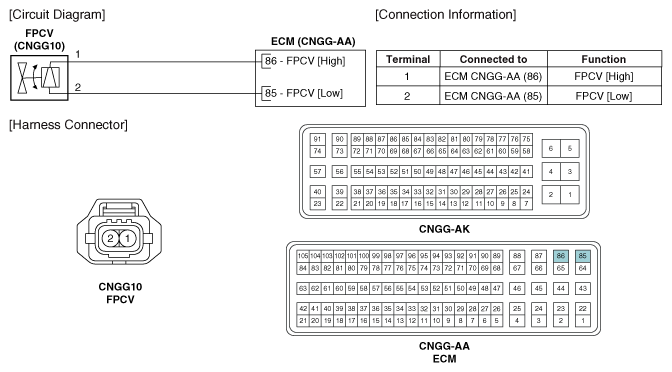

Fig 2: FPCV Circuit Diagram (A/T) With Connector End Views
G10604624Courtesy of HYUNDAI MOTOR AMERICA
