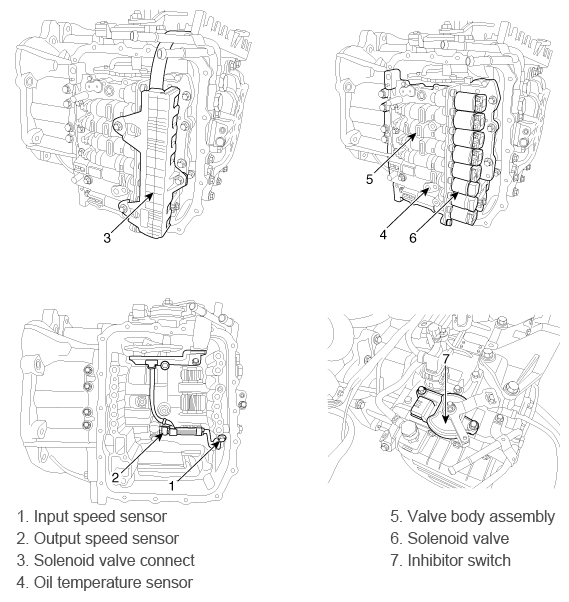

Transaxle Components

WARNING: This page is about a different variant/trim than selected.
G12019018Courtesy of HYUNDAI MOTOR AMERICA
