Components And Components Location: Components

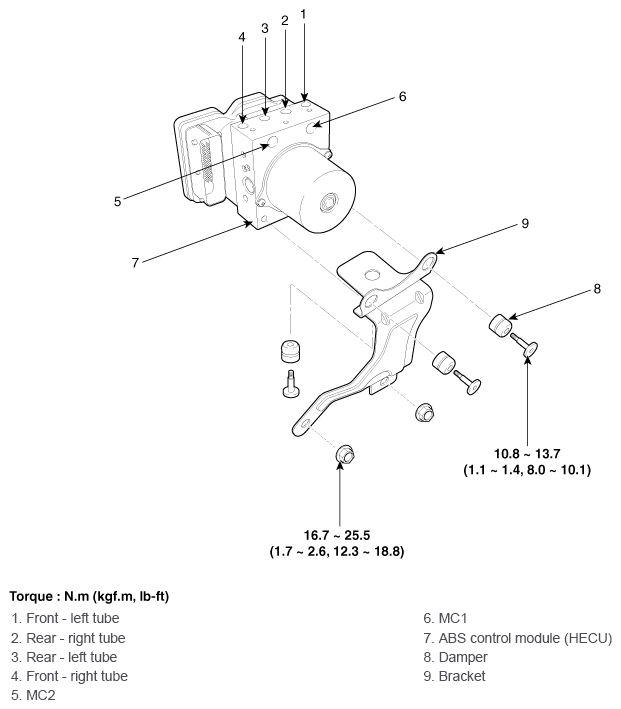

Fig 1: ESC Control Module Components With Torque Specifications
G12018309Courtesy of HYUNDAI MOTOR AMERICA
