Home › Hyundai › 2017 › Accent Value Edition › Repair and Diagnosis (Single Page) › Engine Mechanical › Mechanical › Timing System › Timing Chain › Components And Components Location › Components

Components And Components Location: Components

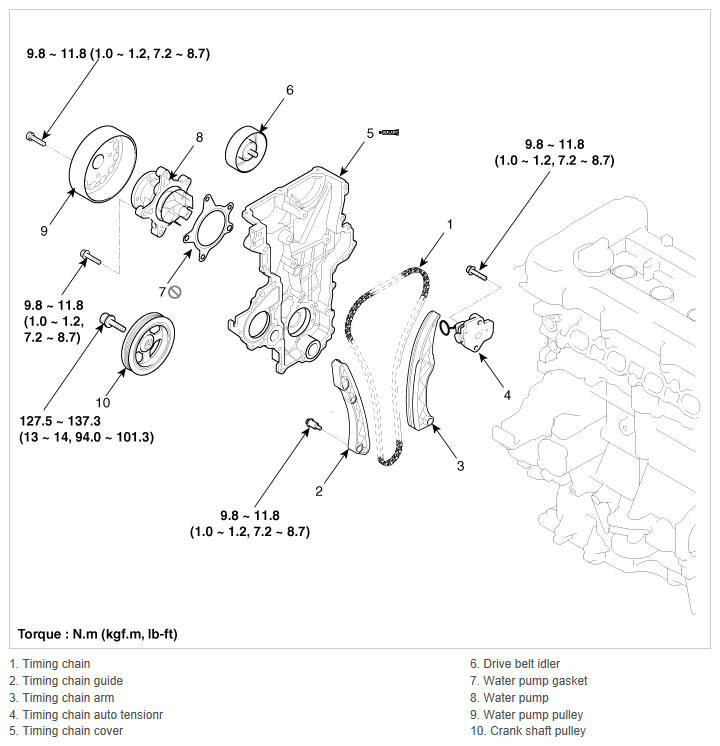

Fig 1: Timing Chain Components With Torque Specification
G12015894Courtesy of HYUNDAI MOTOR AMERICA
