Home › Hyundai › 2017 › Accent Value Edition › Repair and Diagnosis › Brakes › Traction Control › Electronic Stability Control (ESC) System › Rear Wheel Speed Sensor › Components And Components Location › Components

Components And Components Location: Components

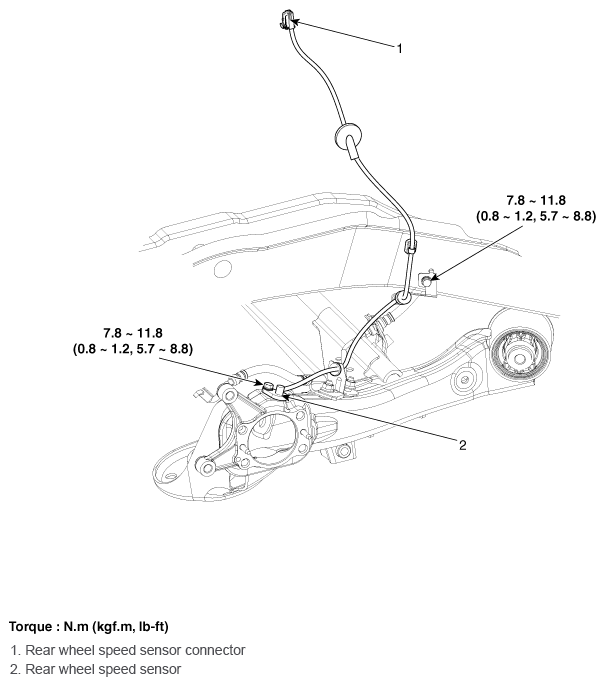

Fig 1: Rear Wheel Speed Sensor Components With Torque Specifications
G12018317Courtesy of HYUNDAI MOTOR AMERICA
