Components And Components Location: Components

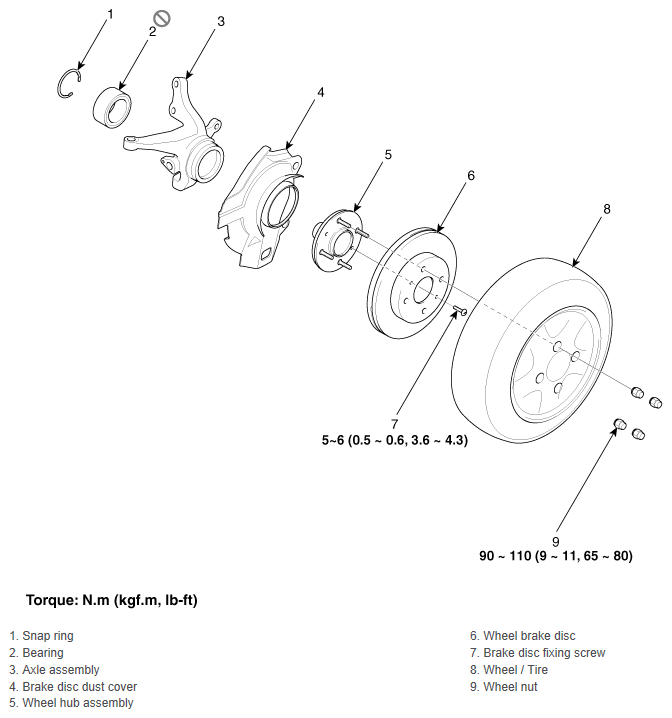

Fig 1: Exploded View Of Front Hub/Knuckle Components With Torque Specification
G12017794Courtesy of HYUNDAI MOTOR AMERICA
