Components And Components Location: Components

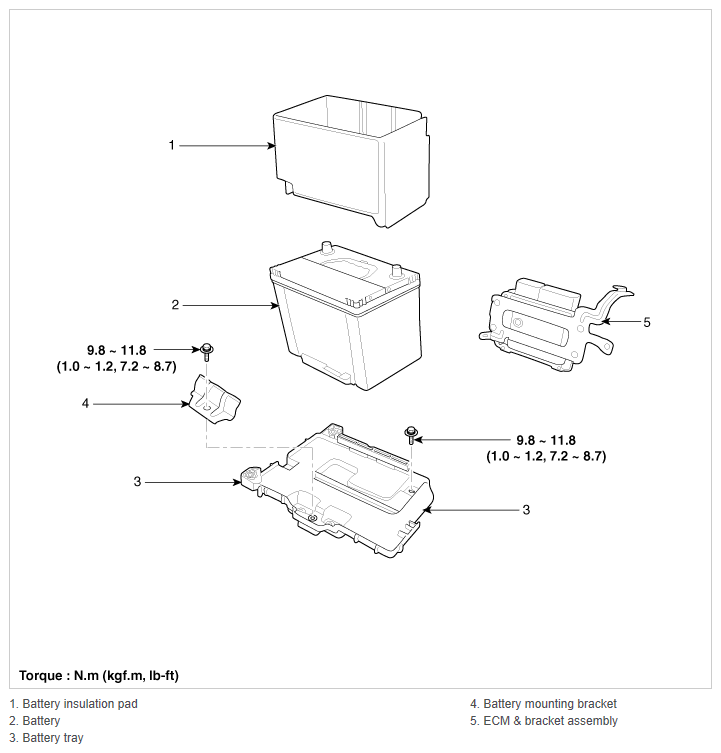

Fig 1: Battery Components With Torque Specifications
G12016244Courtesy of HYUNDAI MOTOR AMERICA
