Components And Components Location: Components

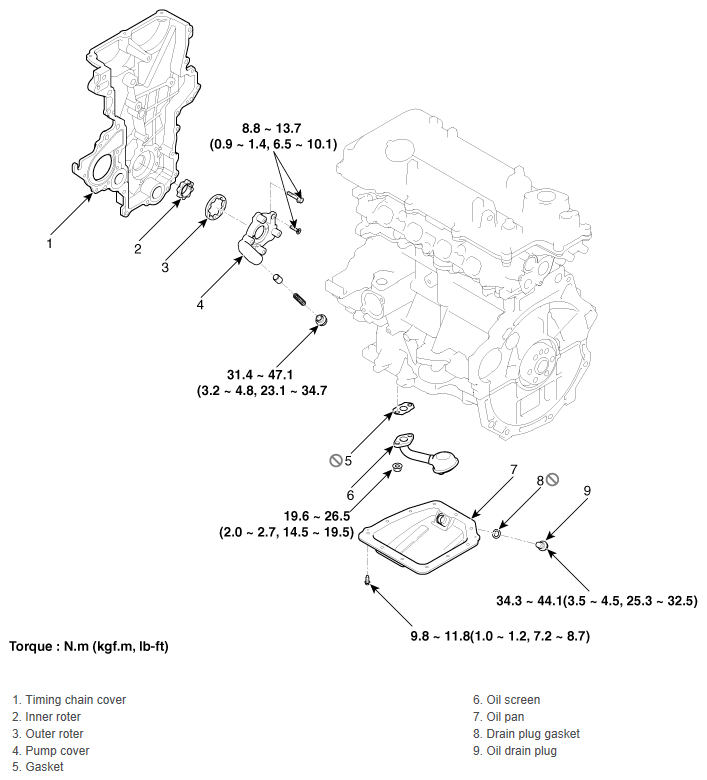

Fig 1: Engine Oil Pump Components With Torque Specification
G12016129Courtesy of HYUNDAI MOTOR AMERICA
