Camshaft Position Sensor (CMPS)
›
Troubleshooting
›
Signal Waveform
Signal Waveform

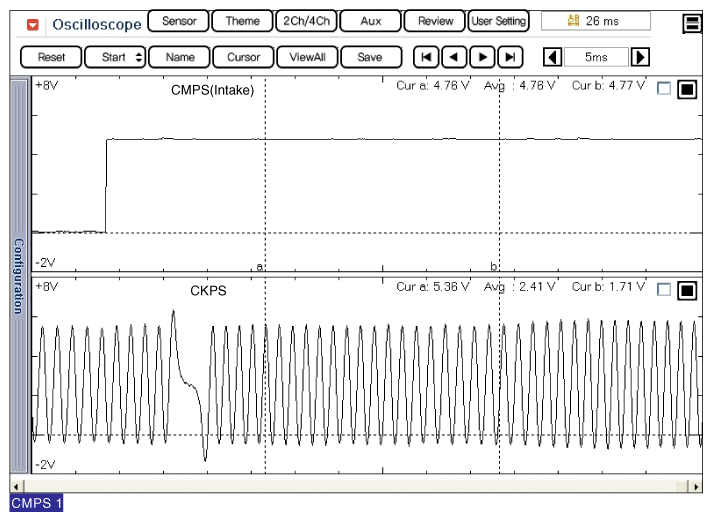

Fig 1: Scantool Display - Signal Waveform Of Camshaft And Crankshaft Position Sensor (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

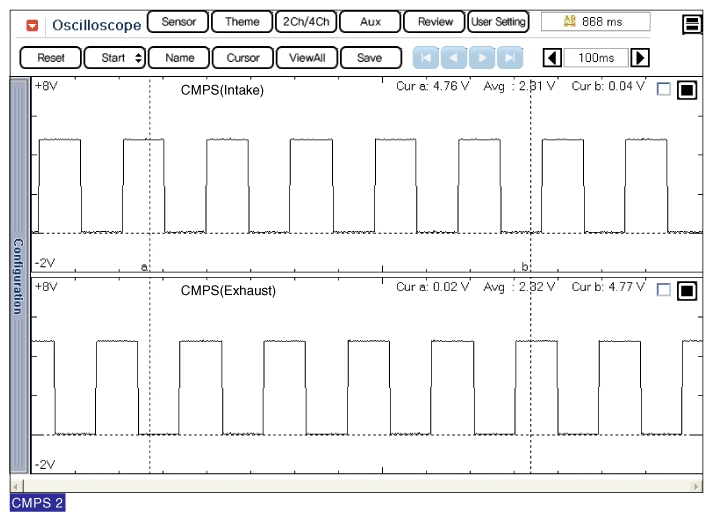

Fig 2: Scantool Display - Signal Waveform Of Camshaft And Crankshaft Position Sensor (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
