Circuit Diagram: M/T

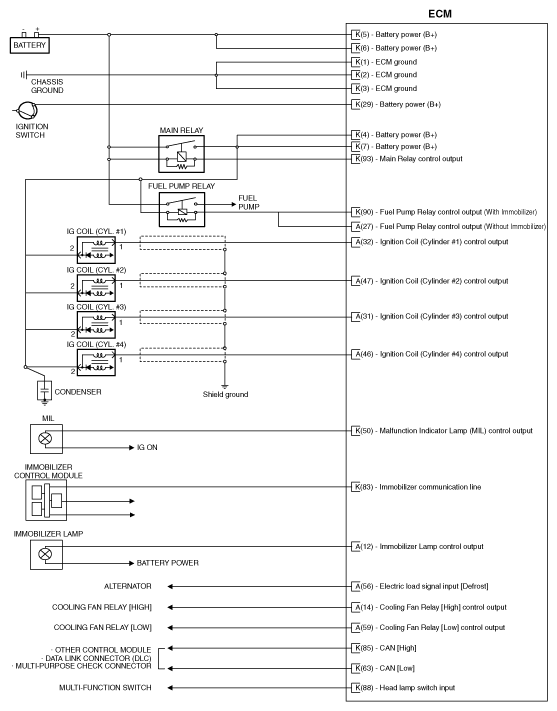

Fig 1: Engine Control Module Diagram - M/T (1 Of 4)
G12016357Courtesy of HYUNDAI MOTOR AMERICA

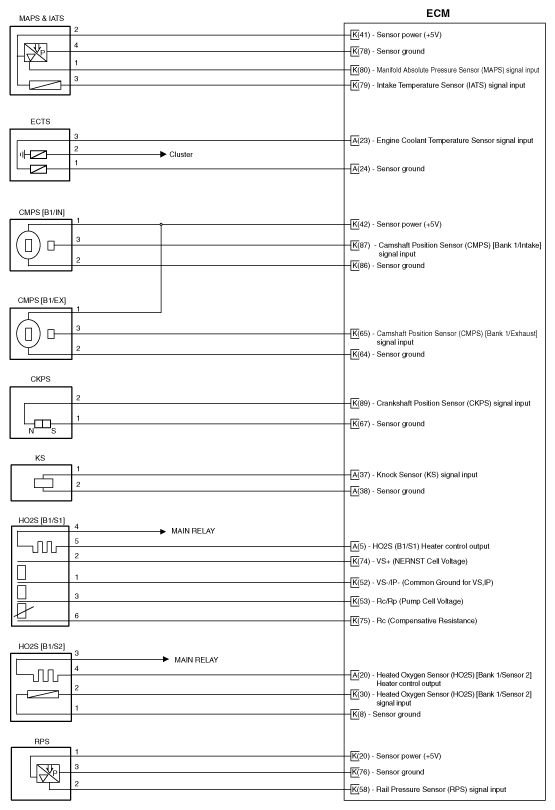

Fig 2: Engine Control Module Diagram - M/T (2 Of 4)
G12016358Courtesy of HYUNDAI MOTOR AMERICA

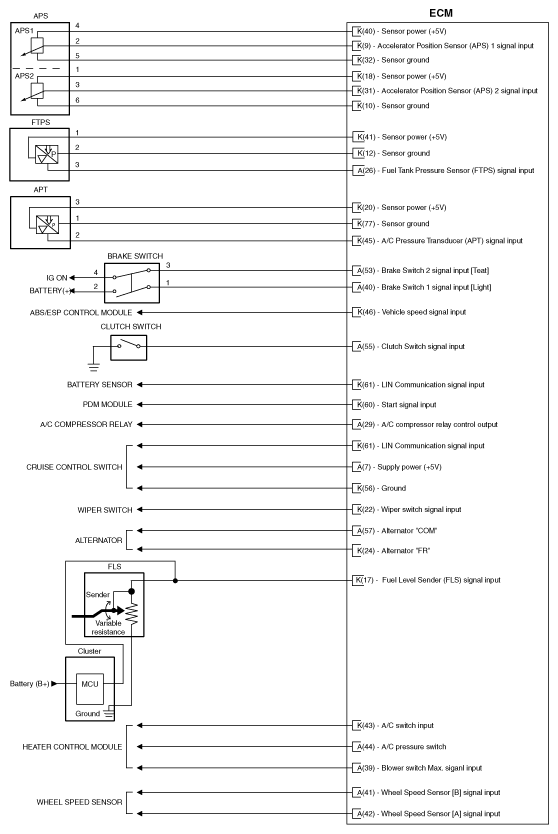

Fig 3: Engine Control Module Diagram - M/T (3 Of 4)
G12016359Courtesy of HYUNDAI MOTOR AMERICA

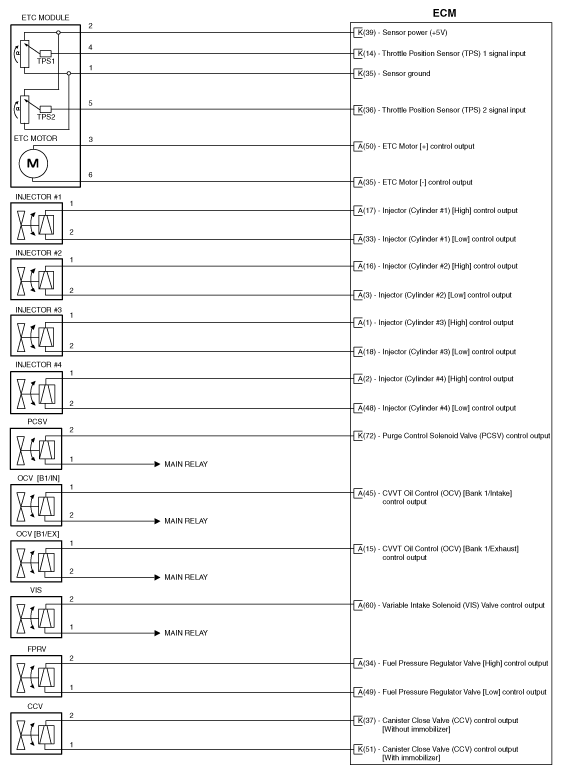

Fig 4: Engine Control Module Diagram - M/T (4 Of 4)
G12016360Courtesy of HYUNDAI MOTOR AMERICA
