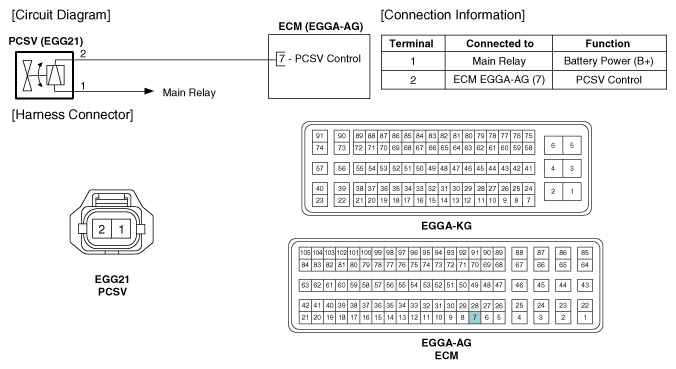

Home › Hyundai › 2017 › Accent Value Edition › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System › Purge Control Solenoid Valve (PCSV) › Schematic Diagrams › Circuit Diagram › A/T
