Circuit Diagram: A/T

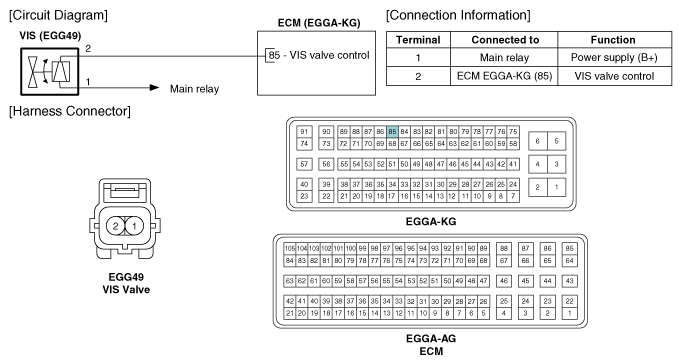

Fig 1: Variable Intake Manifold Solenoid Valve Diagram (A/T)
G12016459Courtesy of HYUNDAI MOTOR AMERICA
