Circuit Diagram: M/T

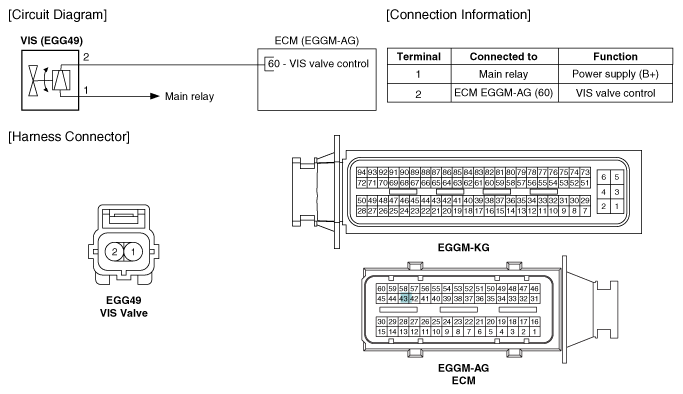

Fig 1: Variable Intake Manifold Solenoid Valve Diagram (M/T)
G12016458Courtesy of HYUNDAI MOTOR AMERICA
